Veer Flanges India based in Kolkata, makes and sells top-notch flanges for many industries. We focus on AISI 4140 flanges known for being strong, tough, and resistant to wear. These flanges work well in demanding fields like cars, planes, and oil & gas where they need to perform well and last long. At Veer Flanges, we aim to make products that are precise high-quality, and dependable.
AISI 4140 flanges come from a low-alloy steel with about 0.40% carbon, 0.80–1.10% chromium, and 0.15–0.25% molybdenum. This mix of metals gives the steel great toughness high tensile strength, and strong resistance to fatigue. These flanges have a tensile strength of 655 MPa and a yield strength of 415 MPa which shows how well they perform . They stand out because they resist wear harden well and have robust strength. This makes them a good fit for tough high-stress settings. You’ll often find these flanges in cars planes and oil & gas equipment where they need to last long and work well in harsh conditions.
| Size Chart | 1/2″ to 48″ |
|---|---|
| Pressure Rating | Class 150, 600, 300, 1500, 900, 2500 LBS |
| Pressure Calculation in DIN | 6/ 16/ 10/ 40/ 25Bar / PN6 PN16 PN10 PN40 PN25 PN64 |
| JIS | 5K, 16 K, 10 K, 30 K, 20 K, 63 K, 40 K |
| UNI | 6/ 16/ 10/ 40/ 25Bar |
| EN | 6/ 16/ 10/ 40/ 25Bar |
| Flange Face Type | Lap-Joint Face, Large Male-Female, Raised Face, Flat Face, Small Tongue, Small Male-Female, Ring Type Joint, Large Tongue & Groove Flanges manufacturer and Supplier |
| Flanges Marking | All Flanges are marked as follows: Supplier or Manufacturer’s Name, Size, Class, Bore, Dimension, Material, Heat No. Or according to the customer’s request. |
| Element | Content |
|---|---|
| Chromium | 0.80 Tp 1.10 |
| Manganese | 0.75 Tp 1.0 |
| Silicon | 0.15 To 0.30 |
| Carbon | 0.380 To 0.430 |
| Molybdenum | 0.15 To 0.25 |
| Sulfur | 0.040 |
| Phosphorous | 0.035 |
| Iron | Balance |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 655 MPa | 95000 psi |
| Bulk modulus | 140 GPa | 20300 ksi |
| Yield strength | 415 MPa | 60200 psi |
| Shear modulus | 80 GPa | 11600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Elongation at break (in 50 mm) | 25.70% | 25.70% |
| Hardness, Knoop | 219 | 219 |
| Hardness, Rockwell B | 92 | 92 |
| Hardness, Brinell | 197 | 197 |
| Hardness, Rockwell C | 13 | 13 |
| Machinability | 65 | 65 |
| Hardness, Vickers | 207 | 207 |

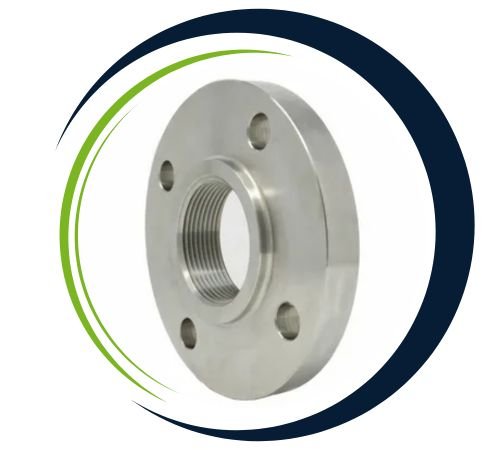

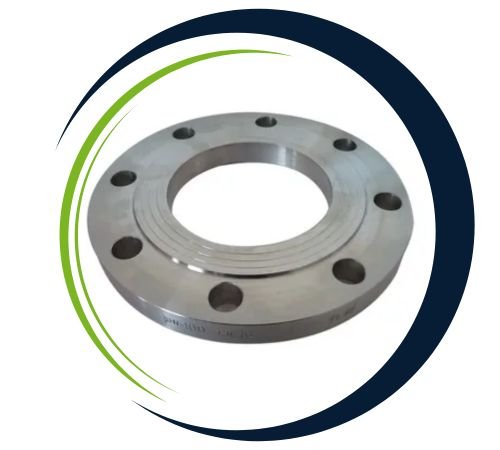

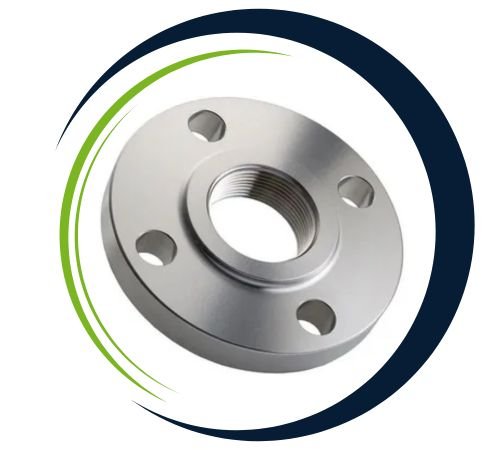

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of AISI 4140 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
AISI 4140 flanges see widespread use in industries that need strong and long-lasting parts for tough jobs. You’ll find them in cars, planes oil and gas work and power plants. They play key roles in systems under high pressure pipe networks and machines. These flanges help to connect pipes valves and gear in important setups like hydraulic systems fuel lines and pressure tanks. AISI 4140 flanges stand out for their strength, resistance to wear and ability to handle extreme conditions. This means they work well and last a long time in the harshest settings.
Yes, we offer custom sizes for AISI 4140 Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
| STANDARD | UNS | WERKSTOFF NR. |
| AISI 4140 | G41400 | 1.7225 |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
