Veer Flanges, located in Kolkata, India, is a Shareholder Manufacturer and supplier of API 6BX Flanges to API standards for strength under pressure in the oil and gas market. API 6BX Flanges are made to the highest standards; they are strong, very durable, and resistant to a corrosive environment. API 6BX Flanges provide leak-proof connections in critical applications, such as subsea equipment, offshore rigs and wellhead systems, all while operating meet extreme pressure conditions. Veer Flanges makes sure your flanges are made to quality and performance standards.
API 6BX Flanges are crafted from high-strength alloy steels; they can usually include carbon steel, stainless steel and other alloy steels with added elements designed to provide corrosion resistance and durability. Typically, this is through chromium, molybdenum, etc. API flanges are required for devices used in extremely high pressures, up to 20,000 psi or higher, and are designed to operate in very harsh environments such as offshore oil fields or oil/ gas rigs. The mechanical properties of API 6BX flanges would include high tensile strength, high fatigue resistance, and toughness at elevated temperatures. There are many benefits of using API 6BX flanges, but specifically, they provide a certain way to connect high pressure devices together to ensure a secure leak-proof connection, essential for ensuring reliability and safety in critical high-pressure oil/ gas processes.
| Material Specification Of : | API 6A 6BX Flanges |
|---|---|
| Special Types Of Flanges : | Nipoflange, Elboflange, Latroflange, Swivel Flange, Expanding Flange, Reducing Flange, Weldoflange |
| Marking Standard | Name of Manufacturer Schedule Type of Flange Facing Nominal Pipe Size Pressure Class ASME B16 Designation |
| Bolt Type | high strength bolts medium strength bolts low strength bolts |
| European Standard Flanges | JIS B2220 Flanges (5k to 30k) and KS1503 flanges |
| Russian-Standard Flanges | GOST 12820 / 12821-80, DIN, UNI, EN 1092-1 |
| South African Standard Flanges | SANSflanges And SABS flanges |
| Standard Cover : | pressure ratings & temperature ratings, materials, marking, dimensions, weight, tolerances, testing |

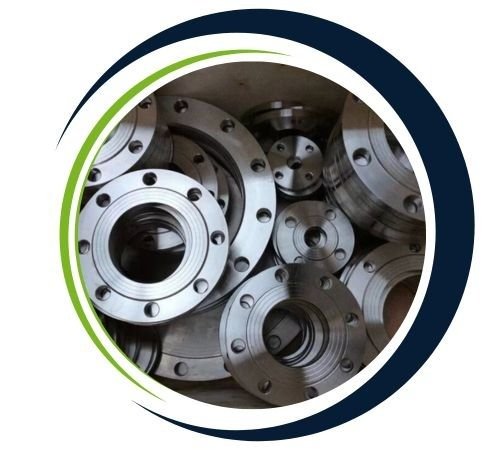

| Contact Faces | RTJ (Ring Type Joint), FF (Flat Face), RF (Raised Face), T/G (Tongue And Groove ), M/F (Male And Female) |
| Size Chart | Normal Pipe Size 1/2 to NPS 24″ |
| Thickness | Normal Pipe Size ≤ 18 |
| Bore Diameter | Normal Pipe ≤ 10 |
| Flanges Standards | EN 1092-1, JIS, ASME B16.5, ASME B16.47 type A, UNI, DIN |
| Pressure Rating | Class 150 To Class 2500 |
| High Temperature | Above 200°C (400°F) For Class 150 Or Above 400°C (750°F) |
| Low Temperature | Above -29 Degree C (−20°F) |
| Common Types Of Flanges: | Slip On (SORF), Weld Neck (WNRF), Blind (BLRF), Lap Joint (Loose), Threaded (NPT), Socket-Weld (SWRF) |
| Surface Finish | smooth, concentric serrated, stock |
| Gaskets Types | Full Face Gasket Flat Ring Gasket Metallic Ring Gakset |
| Advantages Of Pipe Flange | Used to Connect Pipe System Easy Repair Pipe System Assembled Without Welding |
| Normal Pipe Size Of Flange | Working Pressure For Flanges (PSI) | Outside Diameter (O.D>) | Bolt Holes Number | Bolt Holes Diameter | Bolts Length | Ring Gasket For API |
|---|---|---|---|---|---|---|
| 1-13/16″ | 10,000 | 7-3/8″ | 8 | 3/4″ | 5-1/4″ | -151 |
| 1-13/16″ | 15,000 | 8-3/16″ | 8 | 7/8″ | 6″ | -151 |
| 1-13/16″ | 20,000 | 10-1/8″ | 8 | 1″ | 7-3/4″ | -151 |
| 2-1/16″ | 2,000 | 6-1/2″ | 8 | 5/8″ | 5/8″ | R-23 |
| 2-1/16″ | 3,000/5,000 | 8-1/2″ | 8 | 7/8″ | 7/8″ | R-24 |
| 2-1/16″ | 10,000 | 7-7/8″ | 8 | 3/4″ | 3/4″ | -152 |
| 2-1/16″ | 15,000 | 8-3/4″ | 8 | 7/8″ | 7/8″ | -152 |
| 2-1/16″ | 20,000 | 11-5/16″ | 8 | 1-1/8″ | 1-1/8″ | -152 |
| 2-9/16″ | 2,000 | 7-1/2″ | 8 | 3/4″ | 5-1/4″ | R-26 |
| 2-9/16″ | 3,000/5,000 | 9-5/8″ | 8 | 1″ | 7″ | R-27 |
| 2-9/16″ | 10,000 | 9-1/8″ | 8 | 7/8″ | 6-1/4″ | -153 |
| 2-9/16″ | 15,000 | 10″ | 8 | 1″ | 7″ | -153 |
| 2-9/16″ | 20,000 | 12-13/16″ | 8 | 1-1/4″ | 9-1/2″ | -153 |
| 3-1/8″ | 2,000 | 8-1/4″ | 8 | 3/4″ | 5-1/2″ | R-31 |
| 3-1/8″ | 3,000 | 9-1/2″ | 8 | 7/8″ | 6-1/4″ | R-31 |
| 3-1/8″ | 5,000 | 10-1/2″ | 8 | 1-1/8″ | 7-3/4″ | R-35 |
| 3-1/16″ | 10,000 | 10-5/8″ | 8 | 1″ | 7-1/4″ | -154 |
| 3-1/16″ | 15,000 | 11-5/16″ | 8 | 1-1/8″ | 8″ | -154 |
| 3-1/16″ | 20,000 | 14-1/16″ | 8 | 1-3/8″ | 10-3/4″ | -154 |
| 4-1/16″ | 2,000 | 10-3/4″ | 8 | 7/8″ | 6-1/4″ | R-37 |
| 4-1/16″ | 3,000 | 11-1/2″ | 8 | 1-1/8″ | 7-1/2″ | R-37 |
| 4-1/16″ | 5,000 | 12-1/4″ | 8 | 1-1/8″ | 8-3/8″ | -155 |
| 4-1/16″ | 20,000 | 17-9/16″ | 8 | 1-3/4″ | 12-3/4″ | -155 |
| 5-1/8″ | 5,000 | 14-3/4″ | 8 | 1-1/2″ | 10-3/4″ | R-44 |
| 7-1/16″ | 2,000 | 14″ | 12 | 1″ | 7-1/2″ | R-45 |
| 7-1/16″ | 3,000 | 15″ | 12 | 1-1/8″ | 8-1/2″ | R-45 |
| 7-1/16″ | 5,000 | 15-1/2″ | 12 | 1-3/8″ | 11-1/4″ | R-46 |
| 7-1/16″ | 10,000 | 18-7/8″ | 12 | 1-1/2″ | 11-3/4″ | -156 |
| 7-1/16″ | 15,000 | 19-7/8″ | 16 | 1-1/2″ | 13″ | -156 |
| 7-1/16″ | 20,000 | 24-13/16″ | 16 | 2″ | 17-3/4″ | -156 |
| 9″ | 2,000 | 16-1/2″ | 12 | 1-1/8″ | 8-1/2″ | R-49 |
| 9″ | 3,000 | 18-1/2″ | 12 | 1-3/8″ | 9-1/2″ | R-49 |
| 9″ | 5,000″ | 19″ | 12 | 1-5/8″ | 12-1/2″ | R-50 |
| 9″ | 10,000 | 21-3/4″ | 16 | 1-1/2″ | 13-1/4″ | -157 |
| 9″ | 15,000 | 25-1/2″ | 16 | 1-7/8″ | 16″ | -157 |
| 11″ | 2,000 | 20″ | 16 | 1-1/4″ | 9-1/4″ | R-53 |
| 11″ | 3,000 | 21-1/2″ | 16 | 1-3/8″ | 10″ | R-53 |
| 11″ | 5,000 | 23″ | 12 | 1-7/8″ | 14-1/4″ | R-54 |
| 11″ | 10,000 | 25-3/4″ | 16 | 1-3/4″ | 15-3/8″ | -158 |
| 11″ | 15,000 | 32″ | 20 | 2″ | 19-1/2″ | -158 |
| 13-5/8″ | 2,000 | 22″ | 20 | 1-1/4″ | 9-1/2″ | R-57 |
| 13-5/8″ | 3,000 | 24″ | 20 | 1-3/8″ | 10-3/4″ | R-57 |
| 13-5/8″ | 5,000 | 26-1/2″ | 16 | 1-5/8″ | 12-3/4″ | -160 |
| 13-5/8″ | 10,000 | 30-1/4″ | 20 | 1-7/8″ | 17-3/4″ | -159 |
| 13-5/8″ | 15,000 | 34-7/8″ | 20 | 2-1/4″ | 21″ | -159 |
| 16-3/4″ | 2,000 | 27″ | 20 | 1-1/2″ | 10-3/4″ | R-65 |
| 16-3/4″ | 3,000 | 27-3/4″ | 20 | 1-5/8″ | 12-1/4″ | R-66 |
| 16-3/4″ | 5,000 | 30-3/8″ | 16 | 1-78″ | 14-3/4″ | -162 |
| 16-3/4″ | 10,000 | 34-5/16″ | 24 | 1-7/8″ | 17-3/4″ | -162 |
| 18-3/4″ | 5,000 | 35-5/8″ | 20 | 2″ | 18″ | -163 |
| 16-3/4″ | 10,000 | 40-15/16″ | 24 | 2-1/4″ | 23″ | -164 |
| 20-3/4″ | 3,000 | 33-3/4″ | 20 | 2″ | 15-1/4″ | R-74 |
| 21-1/4″ | 2,000 | 32″ | 24 | 1-5/8″ | 12-1/2″ | R-73 |
| 21-1/4″ | 5,000 | 39″ | 24 | 2″ | 19″ | -165 |
| 21-1/4″ | 10,000 | 45″ | 24 | 2-1/2″ | 24-3/4″ | -166 |
| 26-3/4″ | 2,000 | 41″ | 20 | 1-3/4″ | 14-1/4″ | -167 |
| 21-1/4″ | 3,000 | 43-3/8″ | 24 | 2″ | 17-1/2″ | -168 |

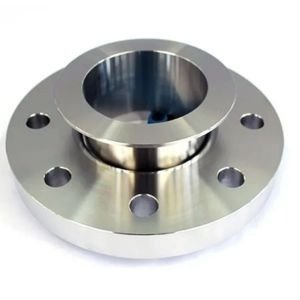

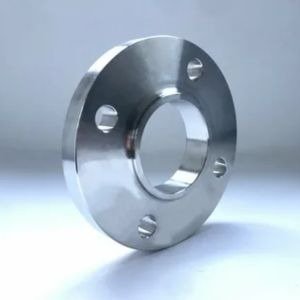

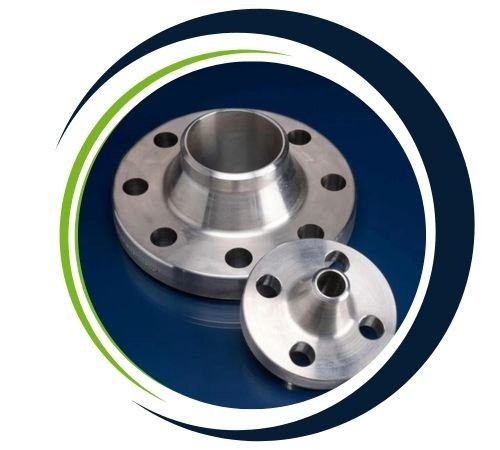

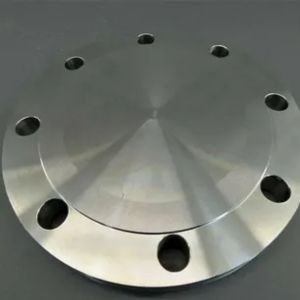

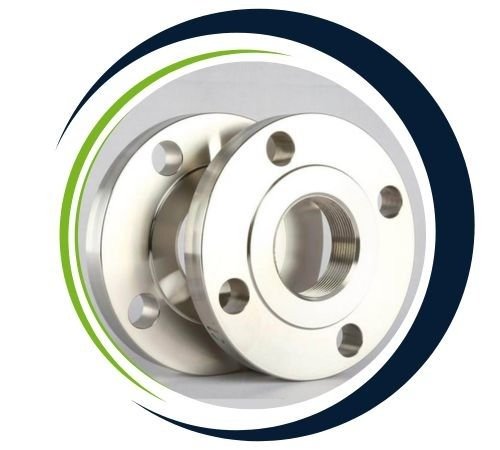

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of API 6BX Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
API 6BX Flanges are commonly used in the oil and gas sector, especially in high-pressure applications with oil and gas. These flanges offer reliable, leak-proof connections with the essential components of any system including valves, pressure control systems, and pipelines. The flanges are designed for high-pressure situations that can exceed 20,000 psi, which is crucial in ensuring safety and integrity to oilfield operations. API 6BX Flanges are also utilized in high-temperature locations and corrosive conditions that affect surroundings while ensuring durability and performance in the application.
Yes, we offer custom sizes for API 6BX Flange to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
| Weld Neck, Integral, Blinds, Equivalent | |||
| Maximam Working Pressure | 2000 PSI | 3000 PSI | 5000 PSI |
| Test Pressure | PSI 3000 | PSI 4500 | PSI 7500 |
| Product Spec Levels | 1, 2, 3 and 4 | 1, 2, 3 and 4 | 1, 2, 3 and 4 |
| API Temperature Rating | K (-60 ° C) to Y (+345 ° C) | K (-60 ° C) to Y (+345 ° C) | K (-60 ° C) to Y (+345 ° C) |
| Integral, BLRF, Target BLRF and Test Flanges | |||
| Minimam Yield | 60 000 PSI | 60 000 PSI | 60 000 PSI |
| Minimam Tensile | 85 000 PSI | 85 000 PSI | 85 000 PSI |
| Material | API 60K | API 60K | API 60K |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
