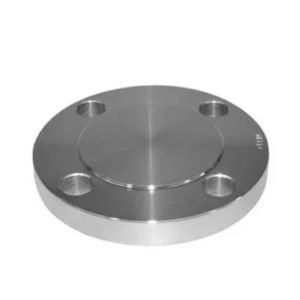

Veer Flanges, located in Kolkata, India is a well-known manufacturer & exporter of high-Pressure API Type 6BX Blind Flanges rated to 15,000 PSI. Engineered to work well even under the most challenging pressures applicable to the oil, gas and petrochemical industry, Flanges made by Veer are built to last and are reliable. As a flanges partner we feel committed to quality and reliability and all of our flanges are built to industry standards, and can guarantee a leak-tight seal under extreme stress. With emphasis on efficiency, our goal is complete customer satisfaction, and better pricing than the competition, we are here for you when you need trusted high-pressure flange solutions. Reach out to us today for custom products, engineered for your specific operating product requirements.
API Type 6BX Blind Flanges for 15,000 PSI are typically manufactured from high-strength steel alloys such as ASTM A694 F60 that are specifically built to tolerate extreme pressure and compression. These flanges are offered at longer lengths, to maximize tensile and yield strength for efficient use of relatively low volume fasteners needed or larger HWNR components with comparable categorization for applications challenged with high stress. Greater durability and impact resistant, their solid construction offers a safe, leak-tight seal – with high system integrity during installation and disassembly via fasteners – for essential critical systems in the oil, gas, and petrochemical industry. The paramount increased benefits include: enhanced corrosion resistance, increased service life, and superior performance under extreme pressure conditions; as can be reasonably expected from API 6BX Blind Flanges for industrial applications for the most demanding high-performance needs.
Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of API – Type 6BX Blind Flanges 15,000 PSI, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specification Table Of : | API Type 6BX Flange |
| ADNOC Approved Manufacturer Of Standards | ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15 |
| Temperature Ratings | 150 LB To 2500 LB |
| Size Chart | (1/2″) To (48″) |
| Manufacturing Process |
|
| Face Type Details | Raised Face, Large Tongue & Large Male-Female And Small Male-Female, Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face. |
| Forging Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Mild Steel, Hastelloy, Copper Nickel, Wrought Iron. |
| Thickness | NPS ≤ 18 |
| Flanges High Temperature | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Our Top Selling Products | Lap Joint, Socket-Weld, Blind, Threaded, Weld Neck, Slip-On |
| Buy Flanges For Pipe Connection | Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry |
| Type Of Making Format | Plate /Forged/ Threaded |
| Bore Diameter | NPS ≤ 10 |
| Size | B | OD | C | E1 | Q (MAX.) | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | Ring Number |
| BX | |||||||||||||||||
| 1 13/16˝ | 46.8 | 210 | 3 | – | 5.56 | 77.77 | 106 | 45.3 | 97.6 | 71.4 | 47.6 | – | 10 | 160.3 | 8 | 26 | 151 |
| 2 1/16˝ | 53.2 | 220 | 3 | – | 5.95 | 86.23 | 114 | 50.8 | 111.1 | 82.5 | 54.0 | – | 10 | 174.60 | 8 | 26 | 152 |
| 2 9/16˝ | 65.9 | 255 | 3 | – | 6.75 | 102.77 | 133 | 57.2 | 128.6 | 100.0 | 57.1 | – | 10 | 200.00 | 8 | 29 | 153 |
| 3 1/16˝ | 78.6 | 290 | 3 | – | 7.54 | 119.00 | 154 | 64.3 | 154.0 | 122.2 | 63.5 | – | 10 | 230.20 | 8 | 32 | 154 |
| 4 1/16˝ | 104.0 | 360 | 3 | – | 8.33 | 150.62 | 194 | 78.6 | 195.3 | 158.7 | 73.0 | – | 10 | 290.50 | 8 | 39 | 155 |
| 5 1/8˝ | 131.0 | 420 | 3 | 9.5 | 9.53 | 176.66 | 225 | 98.5 | 244.5 | 200.0 | 81.8 | 6.4 | 16 | 342.90 | 12 | 42 | 169 |
| 7 1/16˝ | 180.2 | 505 | 6 | 11.1 | 11.11 | 241.83 | 305 | 119.1 | 325.4 | 276.2 | 92.1 | 7.9 | 16 | 428.60 | 16 | 42 | 156 |
| 9 ˝ | 229.4 | 650 | 6 | 12.7 | 12.70 | 299.06 | 381 | 146.1 | 431.8 | 349.2 | 123.8 | 14.2 | 16 | 552.40 | 16 | 51 | 157 |
| 11˝ | 280.2 | 815 | 6 | 14.3 | 14.29 | 357.23 | 454 | 187.4 | 584.2 | 427.0 | 235.7 | 12.7 | 16 | 711.20 | 20 | 54 | 158 |
| 13 5/8˝ | 346.9 | 885 | 6 | 15.9 | 15.88 | 432.64 | 541 | 204.8 | 595.3 | 528.6 | 114.3 | 17.5 | 25 | 771.50 | 20 | 61 | 159 |
| 18 3/4˝ | 477.0 | 1160 | 6 | 18.3 | 18.26 | 577.90 | 722 | 255.6 | 812.8 | 730.2 | 155.6 | 35.1 | 25 | 1016.00 | 20 | 80 | 164 |
API 5BX Blind Flanges – 15,000 PSI (Psi) are crucial components of high pressure systems. API 6BX Blind Flanges are common, and necessary closure components in high-pressure systems in especially in the oil, gas and petrochemical industry. Callable, API 6BX Blind Flanges make secure end closures that isolate flow in pipelines, pressure vessels and any high-pressure system. API 6BX Blind Flanges provide construction simplicity that allows quick assembly and disassembly of components for maintenance, or pressure testing, while maintaining leak-free closures close to production and other processes. API 6BX Blind Flanges are commonly found in offshore drilling rigs, refineries and wellhead assemblies where a consistent, leak-free seal can be critical for safety and the efficiency of operations. API 6BX Blind Flanges combine toughness and flexibility and makes them the first choice in the most challenging high pressure applications.
| NPS In Inch. | DN In MM | Flange Outside Daimeter A In MM | Flange Thickness D In MM | API 6a SORF Flange Weight In KG | API 6a WN Flange Weight In KG | API 6a BLRF Flange Weight In KG |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Yes, we offer custom sizes for API – Type 6BX Blind Flanges 15,000 PSI to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
