Veer Flanges, Kolkata, India, is a trustworthy manufacturer and supplier of high-quality flanges, including the C22.8 flange. Veer Flanges specialize in high-precision and high-quality manufactured products for the oil and gas, petrochemical and marine industries. The C22.8 flange is known worldwide for its amazing strength and corrosion-resistance and can be used in the most demanding applications. Veer Flanges are reliable and innovative, placing customer satisfaction as a high priority. They deliver products of high quality and reliability under strict adherence to industry standards, becoming the preferred source for clients who need reliable and efficient flange products.
The C22.8 flange is made from a high-performance alloy steel, which consists primarily of Chromium (Cr), Molybdenum (Mo), and Nickel (Ni) with minor amounts of Carbon (C), Silicon (Si), and Manganese (Mn) – composition attributes good corrosion resistance and high strength. The mechanical properties of C22.8 can be summarized as yielding strength of around 310 MPa and tensile strength ranging from 600 to 800 MPa. The C22.8 flange also provides good ductility and impact toughness at room temperature, good resistance to high-temperature conditions and toughness at elevated temperature; making it a suitable material for use in critical applications. Industries include petrochemical, oil, and gas.

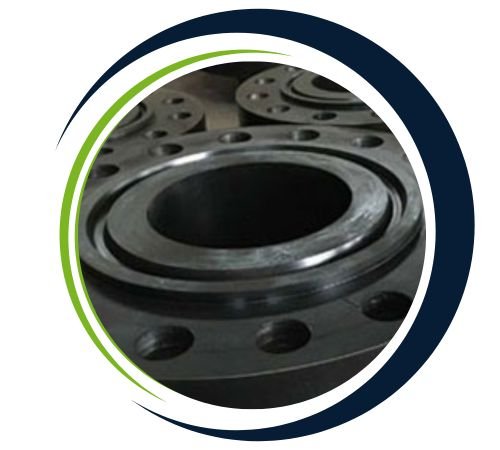

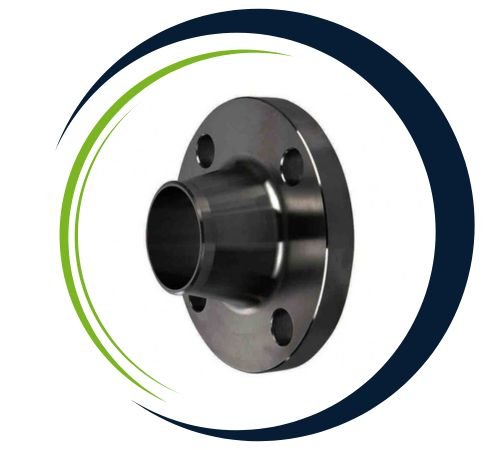

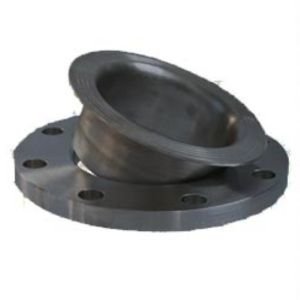

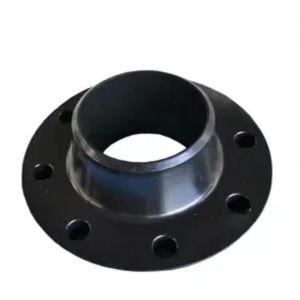

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of C22.8 Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specifications | C22.8 |
| ASME B16.5 Carbon Steel C22.8 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Carbon Steel C22.8 Flanges Standards | ANSI/ASME B16.5, B16.48, BS4504, B16.47 Series A & B, EN-1092, BS 10, DIN, ASME Flanges, ANSI Flanges, DIN Flanges, BS Flanges, GOST Flanges,EN Flanges |
| Carbon Steel C22.8 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Carbon Steel C22.8 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Carbon Steel C22.8 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Carbon Steel C22.8 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Carbon Steel C22.8 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |

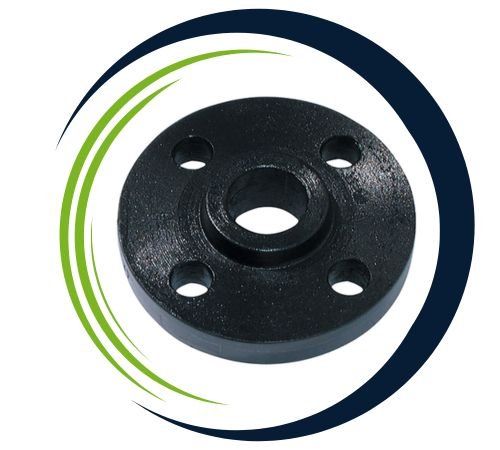

| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Element / Component | Composition % |
| Carbon ( C ) | 0.18 – 0.23 |
| Manganese ( Mn ) | 0.40 – 0.90 |
| Phosphorus ( P ) | 0.035 max |
| Sulphur ( S ) | 0.030 max |
| Silicon ( Si ) | 0.40 max |
| Aluminium ( Al ) | 0.015 – 0.050 |
| Chromium ( Cr ) | 0.30 max |
| Items | Value |
| Yield Strength ReH N/mm2 | 240 min |
| Tensile Strength Rm N/mm2 | 410 – 540 |
| Elongation ( A ) | 25% min |
| Impact Test ( J ) | 44 min |
The C22.8 flange is very popular in tough service areas due to its strength, corrosion resistance, and durability. It is used in the petroleum and gas, petrochemical, and marine sectors and applications to make everything from pipelines, vessels, and heat exchangers used in high pressure, high-temperature service. It meets the demands of chemical process applications due to its resistance in acidic service environment. The C22.8 was used in power generation plants, desalination plants, and refineries to make safe and robust connections in systems utilizing corrosive fluids in high-pressure and high-temperature applications. The performance and reliability of the C22.8 flange has made it a preferred choice for critical missions in infrastructure.
Yes, we offer custom sizes for C22.8 Flange to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
