Veer Flanges proves to be one of the most distinguished producer and supplier of Carbon Steel A36 Flanges located in Kolkata, India. Established in consistency of quality, we manufacture flanges, that comply with the highest levels of standards in the industry which produce a global advantage in absolute veracity. Carbon Steel A36 Flanges are useful for their availability of strength, durability, and versatility features which make it attractive to major end users in construction, oil and gas, and manufacturing. Veer Flanges intends to supply more customized customer solutions and commitment of support to promote your local flange needs.
Carbon Steel A36 Flanges consist primarily of iron with a carbon content of between 0.26% and 0.29%; therefore, they have traces of manganese, phosphorus and sulfur. They are very mechanically robust with a yield strength minimum of 250 MPa and a tensile strength that extends from 400 to 550 MPa. A36 flanges are known for their excellent weldability, good machinability, and high strength; they are economic members, and very prevalent in construction applications, stable structures, and industrial piping operations. A36 flanges or A36 carbon steel in general are very durable and perform exceptionally well. They are ideal for environments where demanding forces are present.
| Standards | ANSI/ASME B16.5, EN Flanges, BS 10, B16.47 Series A & B, EN-1092, ASME Flanges, BS Flanges, B16.48, DIN, DIN Flanges, GOST Flanges, ANSI Flanges, BS4504. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Production technique | Forged, Heat treated and machined |
Special design | As per your drawing |
| AS, ANSI, BS, DIN and JIS | |
| 15 NB (1/2″) to 200 NB (8″) | |
| Equal and Reducing Configurations | |

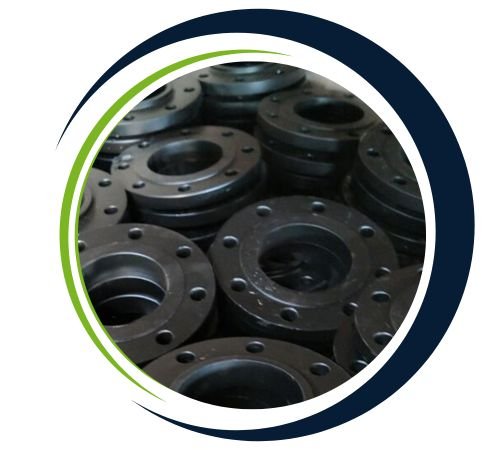

| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Small Tongue, Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Tongue & Groove, Large Male-Female (LMF). |
| Largest Bore Diameter Sizes | NPS ≤ 10 |
| Minimum & Maximum Size | 1/2″ To 48″ |
| Origin | Indian / Japan / Korean / West Europe / USA |
| JIS Standard | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| A182 Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
Test Certificates | EN 10204/3.1B |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc. | |
| Application | Gas, Power, Chemical, Metallurgy, Petroleum, Shipbuilding, Construction etc. |
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V |
| A36 | 0.25 max | 0.40 max | 0.80 – 1.20 | 0.040 max | 0.050 max | – | – | – | – | – |
| Grade | Yield Strength ReH N/mm2 | Tensile Strength Rm N/mm2 | Elongation ( A ) | Impact Test ( J ) |
| A36 | 250 min | 400 – 550 | 20% min | – |

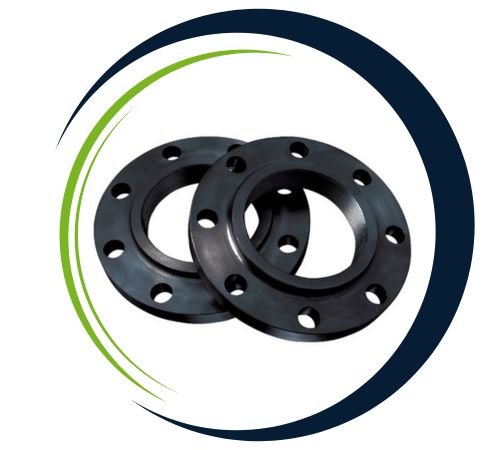

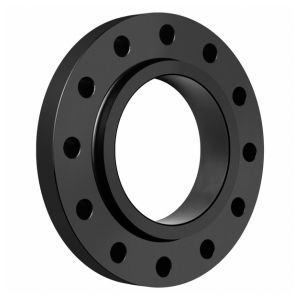

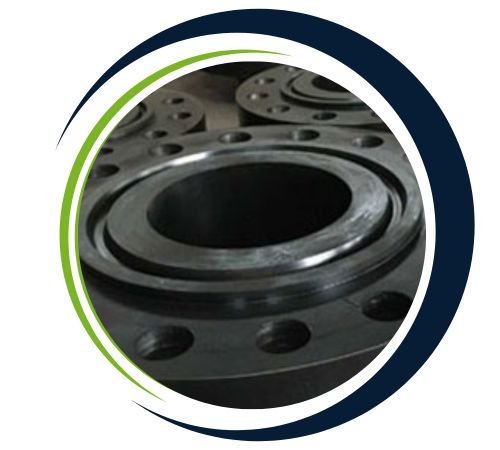

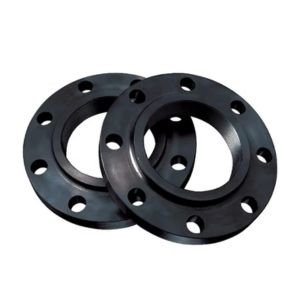

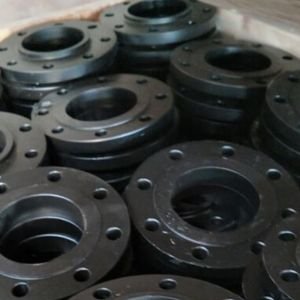

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of Carbon Steel A36 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Carbon Steel A36 Flanges are often used in a variety of applications in the industry due to their toughness and strength in withstanding weight. Flanges are essential components of a piping system providing a secure connection between the pipes valves pumps and fittings which transports fluid and gases safely. Industries such as oil and gas, water treatment and chemical processing utilize A36 carbon steel flanges as vital pieces in their infrastructure. These flanges also play an important role in construction where structural support is mandated and chemical production where machinery assembly is required.
Yes, we offer custom sizes for Carbon Steel A36 Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
