Veer Flanges a reliable manufacturer and supplier in Kolkata, India, is committed to manufacturing high-performance industrial flanges intended for various industry applications. We have a wide range of superior Veer Flange products as well as carbon steel orifice flanges which are specifically engineered to deliver optimal performance in challenging conditions. With such a focus on precision engineering, rugged materials and ongoing product development, Veer Flanges established a significant reputation for dependability and productivity. The company is well known for its customer satisfaction philosophy and its reliable service to the energy, petrochemical and construction industries.

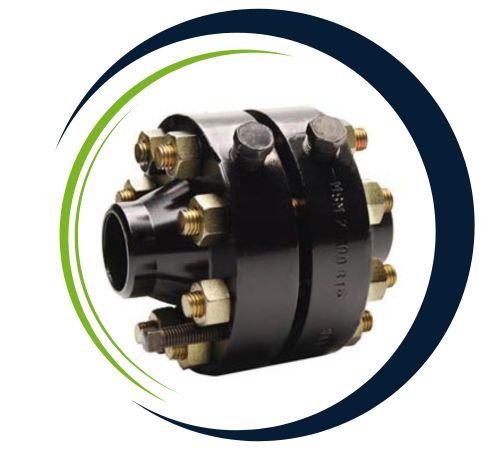

Carbon steel orifice flanges are made from carbon steel, which usually has carbon manganese, silicon sulfur and phosphorus. These flanges are very strong and durable showing great resistance to wear and tear. They provide good yield strength, impact strength and high tensile strength. Carbon steel is affordable because of its low cost. The orifice flange design allows for precise flow control. The advantages of carbon steel orifice flanges include being cost-effective easy to install and reliable in high-temperature and high-pressure situations.
Veer Flanges, a premier supplier in Kolkata, India, specializes in high-quality Carbon Steel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.

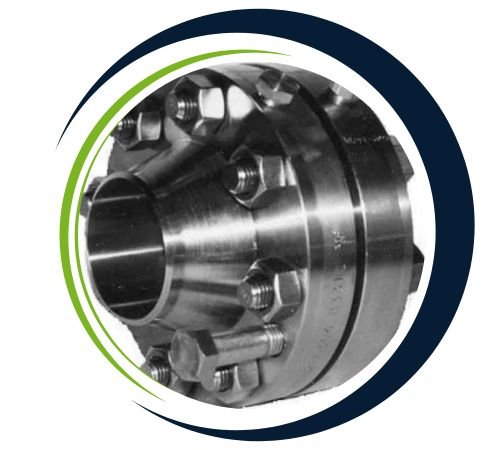

Carbon Steel Orifice Flanges Specifications: ASTM A105/ ASME SA105

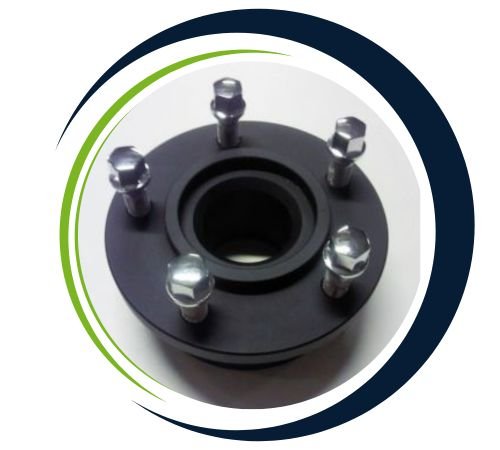

Carbon Steel Orifice Flanges Dimensions: ANSI/ASME B16.36, Series A & B, BS4504, BS 10, EN-1092, DIN, etc.
Carbon Steel Orifice Flanges Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Carbon Steel Orifice Flanges : Size :1/2″ (15 NB) to 48″ (1200NB)
Carbon Steel Orifice Flanges Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

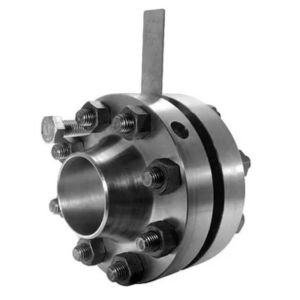

Carbon Steel Orifice Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Hub OD | Weld Neck OD | Welding Neck Length | RF Dia. | RF Height | PCD | Orifice Hole dia | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | F | G | H | I | ||||||||
| 1 | 25 | 125 | 36.6 | 54 | 33.4 | 81 | 50.8 | 2 | 88.9 | 6.4 | 4 | 5/8 | 125 | 3/4 | M16 | 4.5 |
| 1 1/2 | 40 | 155 | 36.6 | 70 | 48.3 | 84 | 73 | 2 | 114.3 | 6.4 | 4 | 3/4 | 135 | 7/8 | M20 | 6.5 |
| 2 | 50 | 165 | 36.6 | 84 | 60.3 | 84 | 92.1 | 2 | 127 | 6.4 | 8 | 5/8 | 125 | 3/4 | M16 | 7 |
| 2 1/2 | 65 | 190 | 36.6 | 100 | 73 | 87 | 104.8 | 2 | 149.2 | 6.4 | 8 | 3/4 | 135 | 7/8 | M20 | 7.5 |
| 3 | 80 | 210 | 36.6 | 117 | 88.9 | 87 | 127 | 2 | 168.3 | 9.5 | 8 | 3/4 | 135 | 7/8 | M20 | 9.4 |
| 4 | 100 | 255 | 36.6 | 146 | 114.3 | 90 | 157.2 | 2 | 200 | 12.7 | 8 | 3/4 | 135 | 7/8 | M20 | 13.2 |
| 6 | 150 | 320 | 36.6 | 206 | 168.3 | 98 | 215.9 | 2 | 269.9 | 12.7 | 12 | 3/4 | 135 | 7/8 | M20 | 14.6 |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 12.7 | 12 | 7/8 | 145 | 1 | M24 | 30 |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.3 | 12.7 | 16 | 1 | 165 | 1 1/8 | M27 | 41 |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 12.7 | 16 | 1 1/8 | 180 | 1 1/4 | M30 | 62 |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 12.7 | 20 | 1 1/8 | 185 | 1 1/4 | M30 | 84 |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 12.7 | 20 | 1 1/4 | 195 | 1 3/8 | M33 | 111 |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 12.7 | 24 | 1 1/4 | 205 | 1 3/8 | M33 | 138 |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 12.7 | 24 | 1 1/4 | 215 | 1 3/8 | M33 | 171 |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 12.7 | 24 | 1 1/2 | 240 | 1 5/8 | M39 | 247 |
Carbon steel orifice flanges are extremely common in industrial piping systems for flow measuring and control of fluids. They are intended to retain orifice plates that quantify the flow rate of liquids gases or steam through the creation of a pressure drop. They find broad application in various industries such as oil and gas, chemical processing power generation, and water treatment based on their long-term durability tensile strength and affordability. Resistance to high pressure and moderate corrosion of carbon steel makes these flanges suitable for severe environments. They also facilitate proper flow measurement and ensure process efficiency making them a requirement in flow control and measurement systems.
Yes, we offer custom sizes for Carbon Steel Orifice Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
