DIN 2543 PN16 Slip On Flanges Manufacturer and Supplier in Kolkata, India

Veer Flanges is a well-respected midland India based manufacturer and supplier of high-end industrial flange solutions. The company is known for its precision engineering and guaranteed service and has a full set of product offering expanding from as small as DIN 2543 PN16 Slip On Flanges. Slip on flanges are extensively used in piping systems because of their durability, ease of installation and secure sealed fitment. Because of its firm belief in excellence and customer satisfaction, Veer Flanges can provide customers in a wide-ranging sectors and industries with consistent and cost-effective solutions in line with international standards and the requirements of specific project needs.

DIN 2642 PN10 Lapped Joint Pipe Flange In India, DIN 2642 PN10 Lap Joint Plate Flange Kolkata, DIN 2642 PN10 Standards Lap Joint Flanges Kolkata, Raised Face DIN 2642 PN10 LJ Flanges Kolkata, Best Price of DIN 2642 PN10 Lap Joint Flange India, Stainless Steel DIN 2642 PN10 Lap Joint Flanges Manufacturer in Kolkata, DIN 2642 PN10 Lapped Joint Flange In India.

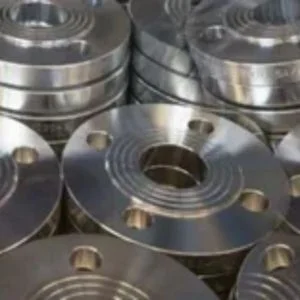

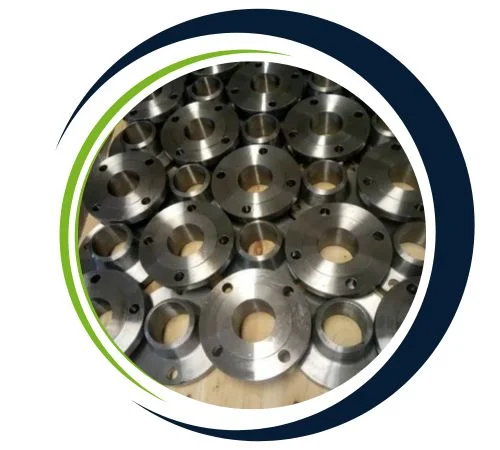

DIN 2543 PN16 Slip On Flanges

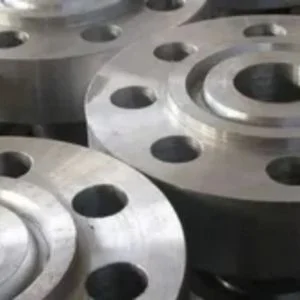

Stainless Steel DIN 2543 PN16 Slip On Flanges in india

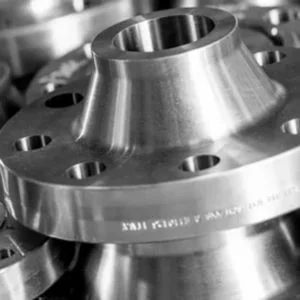

Alloy Steel DIN 2543 PN16 Flange in india

DIN 2543 PN16 Slip On Flanges are typically manufactured with carbon steel grades (e.g., ASTM A105) and stainless steels (e.g., AISI 304/316) but contain only small elements such as carbon, manganese, silicon, and trace alloys for hardness and corrosion resistance. DIN 2543 PN16 Slip On Flanges have a moderate tensile strength of 485–620MPa and yield strength of about 250MPa so they’re able to sustain temperatures as high as 400°C and exert pressure of about 16 bar. Their robust design prevents leakage during connection, making them ideal for pipelines for chemical, petrochemical, and water treatment plants.

DIN 2642 PN10 Lap Joint Flanges Supplier in India, DIN 2642 PN10 Lapped Joint Flanges Stockist in Kolkata, DIN 2642 PN10 Lap Joint Flanges Manufacturer in Kolkata, DIN 2642 PN10 Lap Joint Flanges Supplier in Kolkata, DIN 2642 PN10 Lapped Joint Flanges Stockist in India, DIN 2642 PN10 LJ Flanges Manufacturer in Kolkata, DIN 2543 PN16 Slip On Flanges India.

Largest DIN 2543 PN16 Slip On Flanges in Kolkata, India

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of DIN 2543 PN16 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

DIN 2543 PN16 Slip On Flanges Specification

Size Chart	1/2″ (15 NB) To 48″ (1200NB)
Coating Flanges Faces	Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint
Design For Size	DIN, EN, ASA, PN, JIS, BS, ANSI, ASME
Pressure Rating Table	Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Supporting Flanges Material	Flanges Bolts, Gasket, Ring Joint
Connect Type Type	FF, RTJ, SMF, LMF, RF, LJF
Production Process	Forged, Heat Treated and Machined
Standard	ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange
Machining Equipment	Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc

DIN 2543 PN16 Slip On Flanges Dimensions

Rated	d1		D	b	k	h1	d3	s	r	h2	d4	f	Holes	Thread	d2	Kg
Diameter	ISO Series	DIN Series
15	–	20	95	14	65	35	30	2	4	6	45	2	4	M 12	14	0,648
	21,3	–					32
20	–	25	105	16	75	38	38	2,3	4	6	58	2	4	M 12	14	0,952
	26,9	–					40
25	–	30	115	16	85	38	42	2,6	4	6	68	2	4	M 12	14	1,14
	33,7	–					45
32	–	38	140	16	100	40	52	2,6	6	6	78	2	4	M 16	18	1,69
	42,4	–					56
40	–	44,5	150	16	110	42	60	2,6	6	7	88	3	4	M 16	18	1,86
	48,3	–					64
50	–	57	165	18	125	45	72	2,9	6	8	102	3	4	M 16	18	2,53
	60,3	–					75
65	76,1	–	185	18	145	45	90	2,9	6	10	122	3	4	M 16	18	3,06
80	88,9	–	200	20	160	50	105	3,2	8	10	138	3	8	M 16	18	3,7
100	–	108	220	20	180	52	125	3,6	8	12	158	3	8	M 16	18	4,62
	114,3	–					131
125	–	133	250	22	210	55	150	4	8	12	188	3	8	M 16	18	6,3
	139,7	–					156
150	–	159	285	22	240	55	175	4,5	10	12	212	3	8	M 20	22	7,75
	168,3	–					184
200	219,1	–	340	24	295	62	235	5,9	10	16	268	3	8	M 20	22	11,3
250	–	267	395	26	350	68	285	6,3	12	16	320	3	12	M 20	22	14,7
	273	–					292
300	323,9	–	445	26	400	68	344	7,1	12	16	370	4	12	M 20	22	17,4
350	355,6	–	505	26	460	68	385	7,1	12	16	430	4	16	M 20	22	23,6
	–	368														21,6
400	406,4	–	565	26	515	72	440	7,1	12	16	482	4	16	M 24	26	28,6
	–	419														26,2
(450)	457	–	615	28	565	72	488	7,1	12	16	532	4	20	M 24	26	31,5
500	508	–	670	28	620	75	542	7,1	12	16	585	4	20	M 24	26	38,1
600	610	–	780	28	725	80	642	7,1	12	18	685	5	20	M 27	30	44,6
700	711	–	895	30	840	80	745	8	12	18	800	5	24	M 27	30	62,4
800	813	–	1015	32	950	90	850	8	12	18	905	5	24	M 30	33	84,1
900	914	–	1115	34	1050	95	950	10	12	20	1005	5	28	M 30	33	98,5
1000	1016	–	1230	34	1160	95	1052	10	16	20	1110	5	28	M 33	36	115

DIN 2543 PN16 Slip On Flanges are commonly utilized in industries with a strong need for secure and safe pipe connections. Two examples of these industries are, water treatment plants, gas and oil pipelines, petrochemical plants, and power generation systems. Slip on flanges meet the requirements for usage under moderate temperature and moderate pressure, while lending convenience of easy alignment for the installer and the person doing maintenance, they can be slide fitted onto the pipe which will save time and money. If dealing with low and large diameter pipework the sheen of the slip on flange is apparent. These slip on flanges can also be used in HVAC piping systems, and fire protection systems for ships or offshore drilling rigs, they can provide reliability, resistance to corrosion under typical marine environments, and can provide effective mechanical seals in high pressure (PN16 rating) applications.

DIN 2642 PN10 Lapped Joint Pipe Flange In India, DIN 2642 PN10 Lap Joint Plate Flange Kolkata, DIN 2642 PN10 Standards Lap Joint Flanges Kolkata, Raised Face DIN 2642 PN10 LJ Flanges Kolkata, Best Price of DIN 2642 PN10 Lap Joint Flange India, Stainless Steel DIN 2642 PN10 Lap Joint Flanges Manufacturer in Kolkata, DIN 2642 PN10 Lapped Joint Flange In India.

Types of DIN 2543 PN16 Slip On Flanges

Are Custom Sizes Available for DIN 2543 PN16 Slip On Flanges?

Yes, we offer custom sizes for DIN 2543 PN16 Slip On Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
