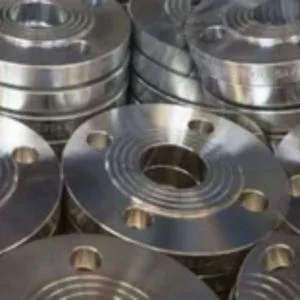

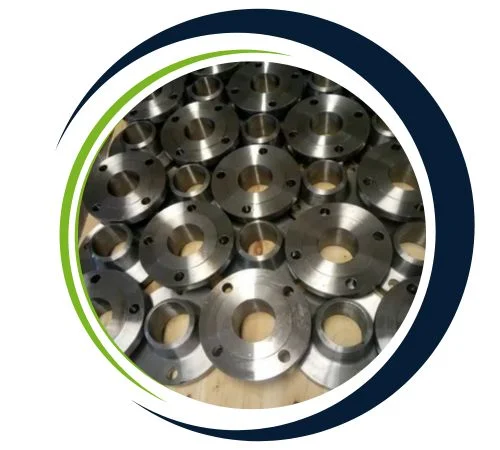

Veer Flanges, a high-end manufacturing, and supply company located in Kolkata, India, is recognized as the top supplier of flanges in many industries. Our product offerings include the entire range of products, e.g., DIN 2576 PN10 Slip On Flanges, and are designed to meet the specific requirements of contemporary engineering schemes. These flanges are manufactured from carbon steel or stainless steel by our manufacturers and provide excellent strength and performance in low-pressure applications. At Veer Flanges we have our standards, all of our solutions are precision-engineered to meet global standards making us a valued supplier to industries around the world which require connections to be strong and reliable in their piping systems.

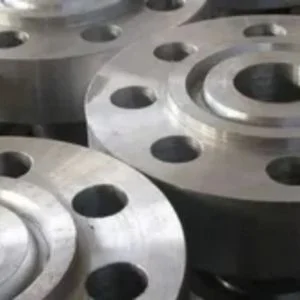

DIN 2576 PN10 Slip-On Flanges are usually made of carbon steel, stainless steel, or alloy steel to obtain strength and durability. Material makeup is, in most cases, carbon, manganese, silicon, phosphorus, and sulfur with stainless steel grades also having chromium, nickel and molybdenum for corrosion resistance. Mechanical properties typically include tensile strength from 400-600 MPa, yield strength of around 200 MPa, and elongation of at least 20%. Moderate pressure capacities make these DIN 2576 PN10 Slip-On Flanges suitable for various industries from oil and gas, water treatment, and chemical processing.
Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of DIN 2573 PN6 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
Pipe | Flange | Bolts | Weight of one flange 7.85 kg/ dm3) kg | |||||||
NW | d1 | ds | D | b1 | k | Number | Thread | d2 | ||
10 | 14 17.2) | 14.5 17.7 | 90 | 14 | 60 | 4 | M12 | (1/2″) | 14 | 0.613 0.605 |
15 | 20 21.3) | 20.5 21.8 | 95 | 14 | 65 | 4 | M12 | (1/2″) | 14 | 0675 0.669 |
20 | 25 26.9) | 25.5 27.4 | 105 | 16 | 75 | 4 | M12 | (1/2″) | 14 | 0.947 0.936 |
25 | 30 33.7) | 30.5 34.2 | 115 | 16 | 85 | 4 | M12 | (1/2″) | 14 | 1.14 1.11 |
32 | 38 42.4) | 38.5 42.9 | 140 | 16 | 100 | 4 | M16 | (5/8″) | 18 | 1.66 1.62 |
40 | 44.5 48.3) | 45 48.8 | 150 | 16 | 110 | 4 | M16 | (5/8″) | 18 | 1.89 1.86 |
50 | 57 60.3) | 57.5 60.8 | 165 | 18 | 125 | 4 | M16 | (5/8″) | 18 | 2.51 2.47 |
65 | 76.1) | 76.6 | 185 | 18 | 145 | 4 | M16 | (5/8″) | 18 | 3.00 |
80 | 88.9) | 89.4 | 200 | 20 | 160 | 4 | M16 | (5/8″) | 18 | 3.79 |
100 | 108 114.3) | 108.5 114.8 | 220 | 20 | 180 | 8 | M16 | (5/8″) | 18 | 4.20 4.03 |
125 | 133 139.7) | 133.5 140.2 | 250 | 22 | 210 | 8 | M16 | (5/8″) | 18 | 5.71 5.46 |
150 | 159 168.3) | 159.5 168.8 | 285 | 22 | 210 | 8 | M16 | (3/4″) | 23 | 6.72 6.57 |
175 | 191 193.7) | 192 194.7 | 315 | 24 | 270 | 8 | M20 | (3/4″) | 23 | 8.60 8.45 |
200 | 216 219.1) | 216 220.1 | 340 | 24 | 295 | 8 | M20 | (3/4″) | 23 | 9.50 9.31 |
250 | 267 273) | 268 274 | 395 | 26 | 350 | 12 | M20 | (3/4″) | 23 | 12.5 11.9 |
400 | 406.4 419 | 407.4 420 | 565 | 32 | 515 | 16 | M24 | (7/8″) | 27 | 27.9 25.9 |
500 | 508) 521 | 509 522 | 670 | 38 | 620 | 20 | M24 | (7/8″) | 27 | 37.9 41.1 |
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
DIN 2576 PN10 Slip On Flanges typically provide low to medium pressure piping solutions across a multitude of applications. Their primary advantages allows them to be used in oil and gas applications, water treatment, HVAC applications and in chemical processing. Slip on flanges are meant for simple mounting and can be used when space is limited or when rapid assembly is desired. It is not uncommon for changes to occur with piping systems, and since reliability and leak-free connections are needed when connecting pumps, valves and piping systems, slip-on flanges are a reliable choice when taking into account flexibility. They may also be used in food processing, power plants and marine uses, guaranteeing uniform performance in changing environments.
Yes, we offer custom sizes for DIN 2576 PN10 Slip On Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
