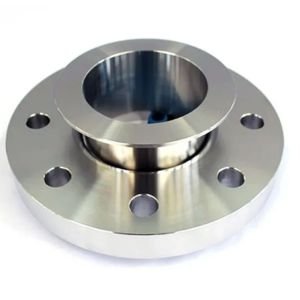

Veer Flanges, Kolkata, India, is a premier manufacturer and supplier of duplex steel 2205 flanges. Designed and made for exceptionally difficult engineering applications, duplex steel 2205 flanges are being used in some of the most demanding industries such as oil and gas, petrochemical, and marine. Duplex 2205 has an austenitic-ferritic balanced microstructure that has excellent pitting, delayed transient highway, stress corrosion cracking, and chloride SCC resistance from chlorides that attack microstructures in the most aggressive conditions. The focus of Veer Flanges are to provide quality, precision, and global compliant flanges.
Duplex Steel 2205 Flanges have around 22% chromium, 5-6% nickel, and 3% molybdenum along with nitrogen and also possess very good corrosion resistance, especially for pitting and chloride stress corrosion. Duplex 2205 has a tensile strength of approximately 620 MPa which means that duplex 2205 demonstrates nearly double the strength of typical austenitic stainless steels; this makes Duplex 2205 in high-stress, difficult applications. Key benefits of using duplex steel include greater longevity or service life; superior fatigue resistance and reliable service in extremely hot marine environments. In closing Duplex 2205 flanges are the right choice for oil & gas, chemical processing, and marine applications because of both corrosion resistant and strength of the material.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 25Bar 16Bar 40Bar |
| EN | 25Bar 6Bar 10Bar 16Bar 40Bar |

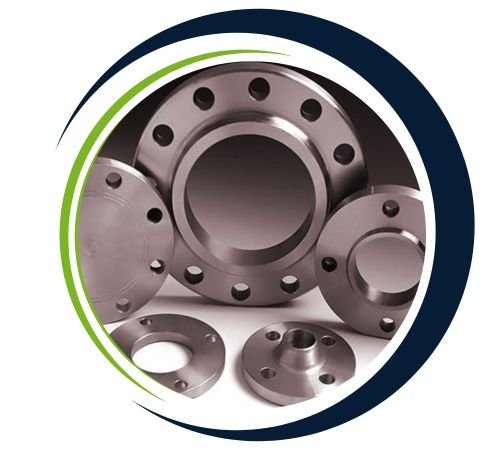

| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Male-Female (LMF), Small Tongue, Large Tongue & Groove, Groove |
| Uses & application |
|
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Coating | Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Anti-rust Paint, Yellow Transparent |
| Most common types | Threaded / Screwed / Forged / Plate |
| Equipment | Pushing Machine, Press machine, electric bevelling machine, Bending machine, Sand-blasting machine etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test | Direct-reading Spectrograph, UI trasonic flaw detector, Hydrostatic testing machine, X-ray detector, Magnetic particle detector |
| Standards | API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, API7S-15, API7S-43, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Export to | Dubai, Singapore, Indonesia, Ukraine, Korea, Iran, India, Saudi Arabia, Thailand, Egypt, Oman, Spain, Canada, USA, Ireland, Brazil, Peru, etc |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |

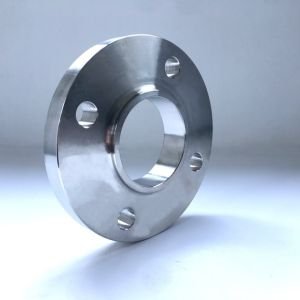

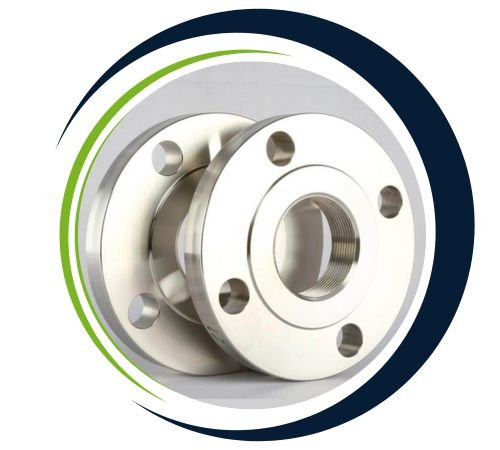

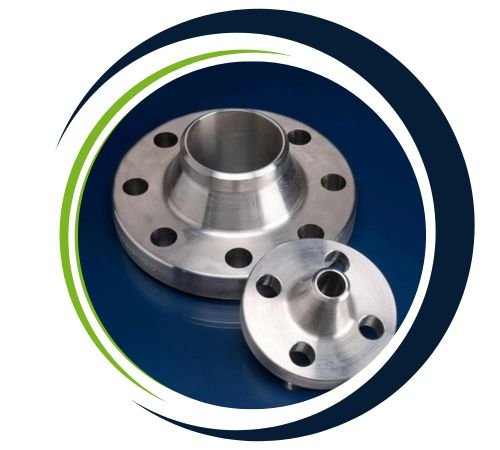

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of Duplex Steel Flanges 2205, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Duplex Steel 2205 Flanges are used in a number of industries needing high strengths and great corrosion protection, especially where chlorides are present. Their highest usage is in the oil & gas sector on pipelines and offshore structures and processing equipment- where protection from corrosion and durability are key factors. In the petrochemical/chemical sector Duplex 2205 flanges are the most widely used for equipment under attack from extremely aggressive chemicals or extreme pressure. In marine applications, where we illustrated a variety of examples including desalination, ship building, and docks, Duplex 2205 flanges are used for protection against corrosion from seawater. Duplex 2205 flanges are also used in pulp & paper processing, heat exchangers ,and other structural applications for their reliability in extremely aggressive conditions.
| C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C ( J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 2205 | 782 | 190 | 13.7 | 14.2 | – | 19 | – | 418 | 850 |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Yes, we offer custom sizes for Duplex Steel Flanges 2205 to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
