Veer Flanges is a reliable Manufacturer and Supplier of Hastelloy C22 Flanges Company having a base in Kolkata, India. Hastelloy C22 is a high-performance alloy, specifically designed for challenging, highly corrosive environments. Hastelloy C-22 is known for its incredible ability to resist pitting corrosion, crevice corrosion and stress corrosion cracking, while also providing good structural integrity to hot and high pressure environments. These characteristics make it commonly used in the pharmaceutical, offshore oil and gas production and marine industries. We understand that industries need quality products for structurally sound systems. Our flanges manufactured from Hastelloy C22 are of the highest standards.
Hastelloy C22 flanges are made from a nickel-chromium-molybdenum-tungsten alloy that is designed for high performance and provides advanced resistance to a number of corrosive environments, both oxidizing and reducing. This alloy make-up provides outstanding resistance to pitting, crevice corrosion and stress corrosion cracking. In addition to corrosion resistance, Hastelloy C22 flanges offer high tensile strength, outstanding ductility, and an even more enhanced resistance to corrosion. The protection of the flanges against the most extreme conditions means they are ideal for some of the most demanding applications, including those found in chemical processing, power generation, and marine environments.
| C22 Forged Fittings Specifications | ASTM B564/ ASME SB564 |
|---|---|
| Alloy C22 Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Hastelloy C22 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Hastelloy C22 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B564 C22 Hastelloy Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Hastelloy C22 Forged Fittings Thread | NPT, BSPT, BSPP |
| C22 Hastelloy Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy C22 Forged Fittings Origin & Mills | India |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

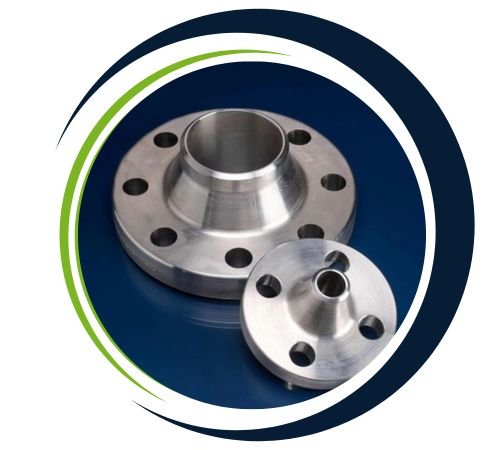

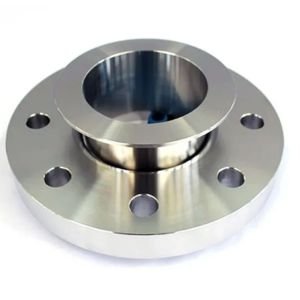

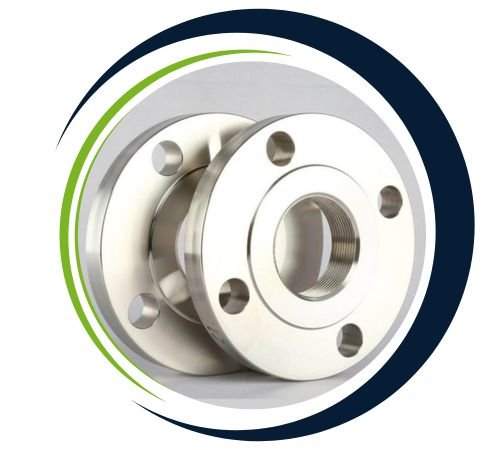

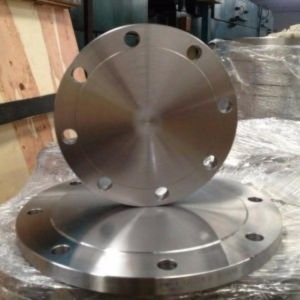

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of Hastelloy C22 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Hastelloy C22 flanges are frequently used in some of the most corrosion-sensitive environments in industries such as pharmaceuticals, petrochemicals, oil and gas, and energy generation. Hastelloy C22 flanges ensure that there are solid and reliable connections in systems that are exposed to highly aggressive chemicals such as acids, chlorides and solvents. They can usually be found in reactors, heat exchangers, pipelines and pressure vessels. Hastelloy C22 flanges are extremely robust and can be used at high temperature and pressures. Additionally, they are also useful in marine and chemical processing environments due to having great resistance to compression, stress corrosion and pitting.
| ASTM B564 / B564M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Hastelloy Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Hastelloy fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Yes, we offer custom sizes for Hastelloy C22 Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Hastelloy C22 | N06022 | 2.4602 | – | NiCr21Mo14W | NW 6022 | – | – |
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C22 | 0.010 | 12.5 – 14.5 | 0.50 | 0.08 | 2.00 – 6.00 | 0.02 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
