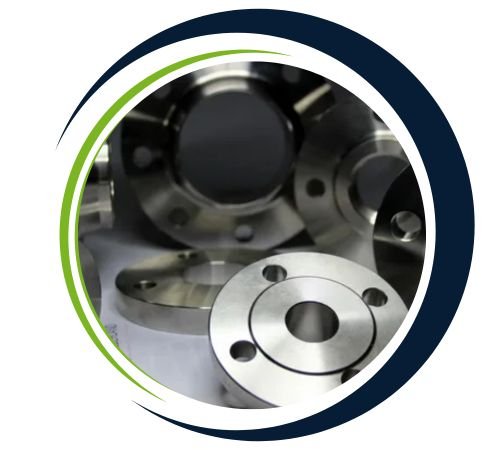

Veer Flanges, a Kolkata, India-based leading manufacturer and supplier of Inconel Blind Flanges with excellent performance in sealing piping system ends that are subject to harsh temperatures and corrosive conditions. Designed from superior Inconel alloys and conforming to international quality standards, the flanges are precision-engineered and shipped by Veer Flanges for use in critical applications in petrochemical, aerospace, marine, and power generation sectors. With superior manufacturing facilities and a focus on quality, Veer Flanges provides standard and custom blind flange solutions in conformity with complex industrial requirements.
Inconel Blind Flanges are normally manufactured using nickel-chromium-based superalloys like Inconel 600, 625, or 718. These alloys offer superior corrosion resistance, tensile strength to 1240 MPa, and superior thermal stability at temperatures over 1000°C. The design of a blind flange enables the flange to shut off the end of a pressure vessel or pipeline and provide a leak-tight, safe seal. The resistance of Inconel to oxidation, pitting, stress-corrosion cracking, and chemical attack provides long service life in harsh industrial conditions.
Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of Inconel Blind Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Inconel Blind Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Inconel BLRF Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ASTM B564 Inconel Blind Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| ASME SB 564 Blind Flange | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ASME SB564 Incoloy Alloyl Blind Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| B564 Blind Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASME SB564M Inconel Alloy Blind Flange Production technique | Forged, Heat treated and machined |
| B564 Blind Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| ASME B564 Blind Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| ASTM B564 Inconel Blind Flange Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Inconel Blind Flange Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of Incoloy Blind Flange | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. ASTM B564 Blind Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 800 Incoloy Alloy Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| ASME SB564 Inconel Alloy Blind Flange Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Inconel Blind Plate Flanges Export to | Ireland, Singapore, Indonesia, Ukraine, Saudi & Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel Blind Flanges | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensilee Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel Blind Flanges | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
Yes, we offer custom sizes for Inconel Blind Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Inconel Blind Flanges find extensive application in the oil & gas, chemical processing, power plants, marine systems, and aerospace industries. They are well suited for isolating sections of pipelines, pressure testing, and safely ending high-temperature or high-pressure piping systems. These flanges are particularly useful in fluid-handling systems involving corrosive fluids, su
Our team is ready to assist you. Contact us for any queries or personalized solutions.
