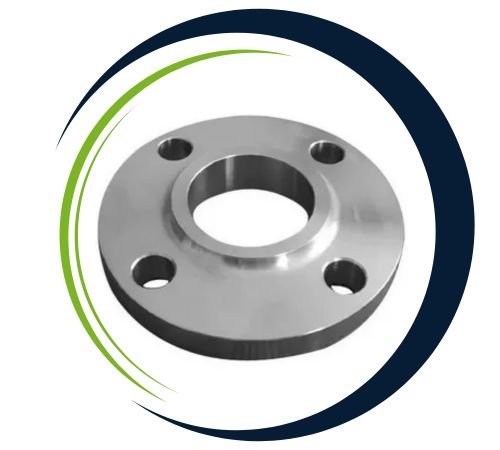

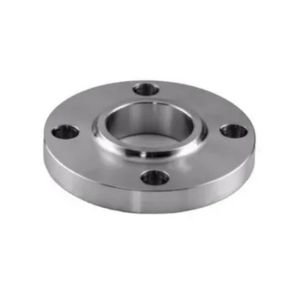

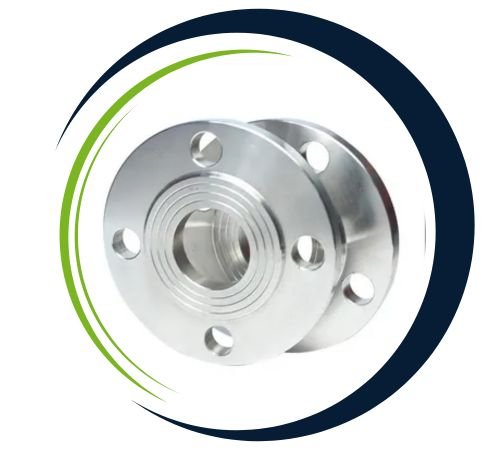

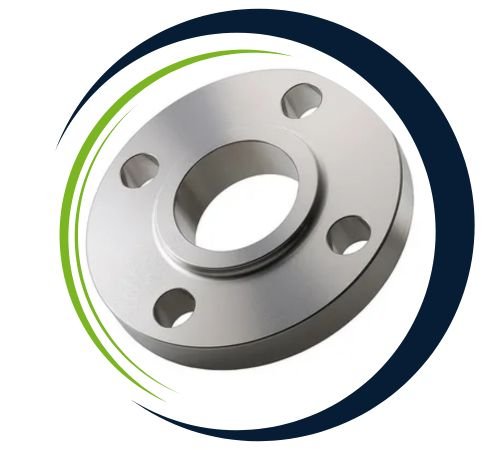

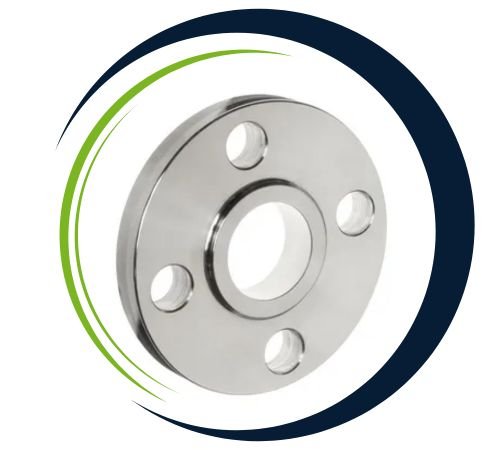

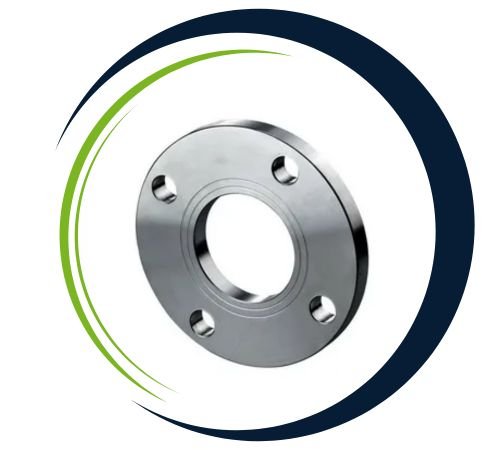

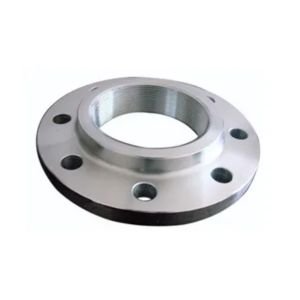

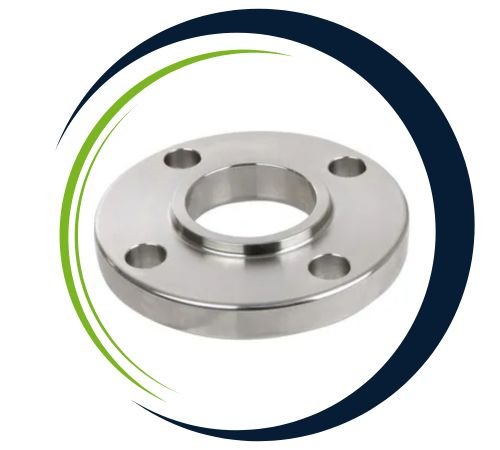

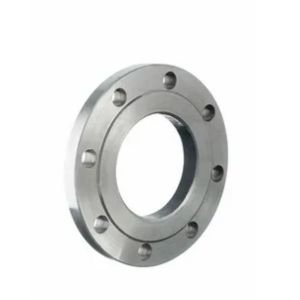

Veer Flanges stands out as a leading manufacturer and supplier of Monel Flat Flanges in Kolkata, India. They specialize in providing corrosion-resistant flange solutions that ensure reliable pipe sealing in low-pressure systems. Crafted from high-quality Monel 400 or Monel K500 alloys, these flanges are perfect for corrosive and marine environments, thanks to their impressive resistance to saltwater, acids, and alkalis. With a flat sealing surface, Monel flat flanges are designed for easy alignment and installation, bolting directly to the pipe. Complying with ASTM B564 and ASME B16.5 standards, Veer Flanges distributes these flanges across various global industrial sectors.
Monel flat flanges are primarily composed of nickel (63–70%) and copper (20–29%), along with trace amounts of iron, silicon, manganese, carbon, and in the case of Monel K500, aluminum and titanium. These alloys are known for their outstanding corrosion resistance in marine, acidic, and alkaline settings. Monel 400 offers moderate strength and ductility, while Monel K500 boasts enhanced tensile strength (up to 1100 MPa) and increased hardness through age hardening. Both grades maintain their performance across a wide temperature range, from cryogenic levels up to 480°C, making them durable and dependable for chemically aggressive and structurally demanding applications.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JIS B2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, K500-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 400 Monel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Monel 400, K500 |
Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of Monel Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Monel Flat Flanges are commonly utilized in systems where alignment ease and corrosion resistance are crucial. Typical applications include marine equipment, offshore oil platforms, chemical processing facilities, desalination plants, power generation, and pharmaceutical production lines. Their flat face design ensures complete contact with gaskets, significantly reducing the risk of leaks in low to moderate pressure piping systems. Monel’s remarkable resistance to seawater, hydrochloric acid, sulfuric acid, and caustic solutions makes these flanges a top choice for challenging service conditions. They are particularly beneficial in applications that require regular inspection, maintenance, or quick access.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Yes, we offer custom sizes for Monel Flat Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
