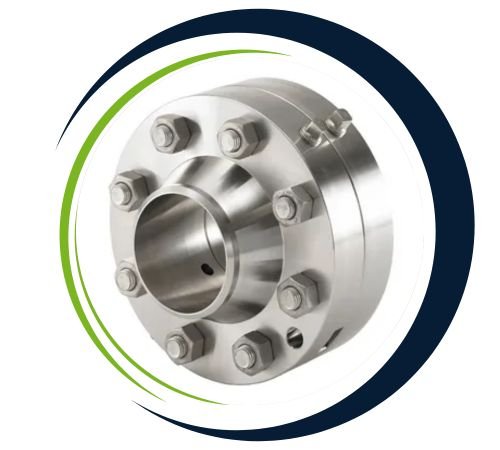

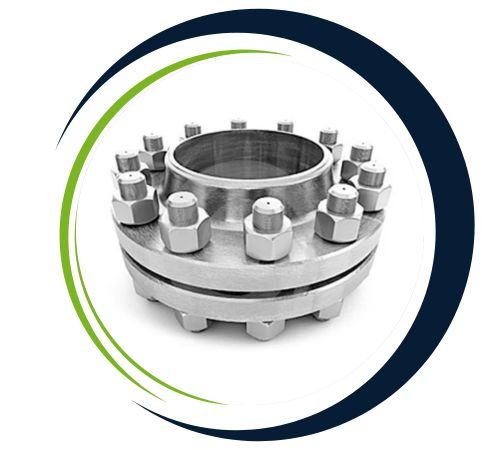

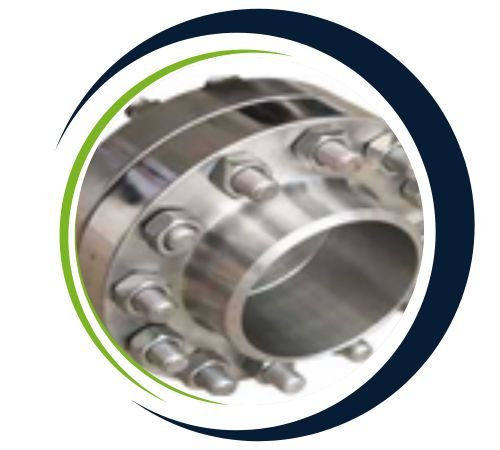

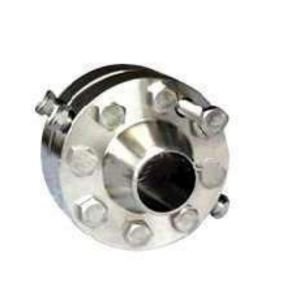

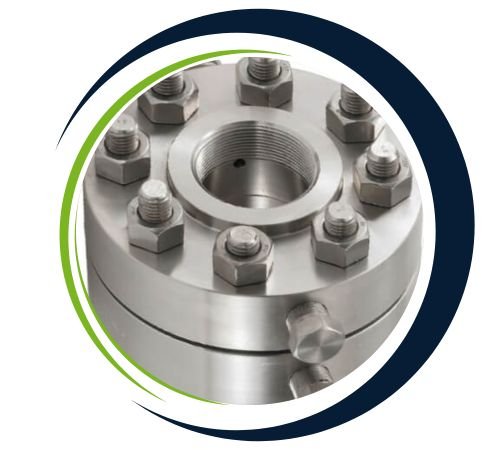

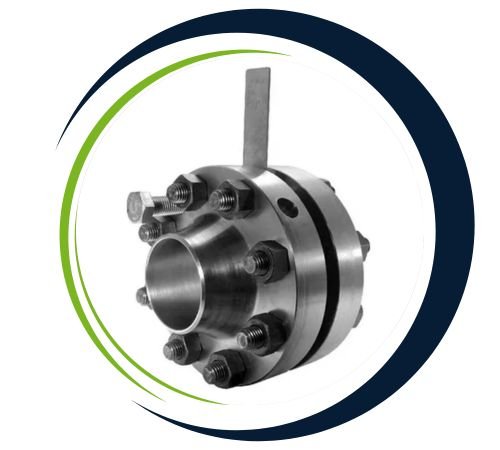

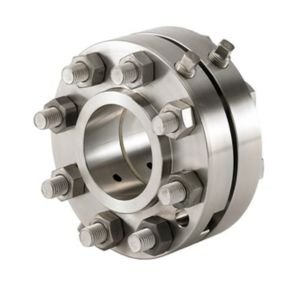

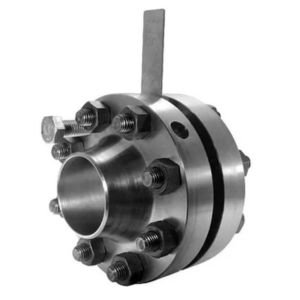

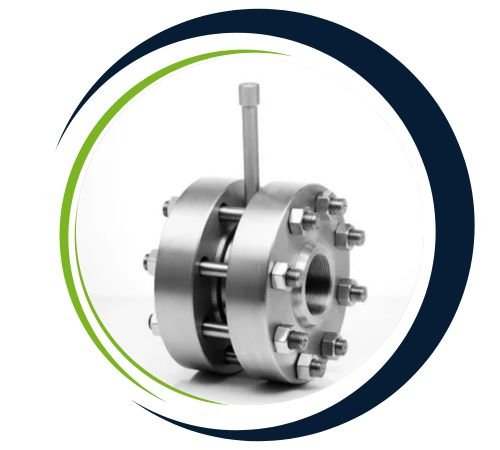

Veer Flanges is a reputable manufacturer and supplier of Monel Orifice Flanges based in Kolkata, India. They specialize in providing precision-engineered solutions for measuring fluid flow in challenging corrosive environments. These flanges are crafted from high-quality Monel 400 or Monel K500, both renowned for their exceptional resistance to corrosion, particularly in marine, acidic, and alkaline settings. Monel orifice flanges feature tapped holes and pressure taps designed for orifice plates, ensuring accurate flow rate monitoring. Adhering to ASTM B564 and ASME B16.36/B16.5 standards, Veer Flanges caters to vital industries like oil & gas, chemical processing, and power generation.
Monel Orifice Flanges mainly consist of nickel (63–70%) and copper (20–29%), along with trace amounts of iron, manganese, silicon, and in the case of Monel K500, aluminum and titanium. These components grant remarkable resistance to hydrofluoric acid, seawater, brine, and caustic alkalis. Monel 400 is known for its good ductility and strength, while Monel K500 boasts higher tensile strength (up to 1100 MPa) and improved hardness. These flanges maintain their structural integrity across a wide temperature range, from cryogenic conditions to 480°C, making them perfect for high-performance, corrosive, and high-pressure measurement systems in industrial piping networks.
Veer Flanges, a premier supplier in Kolkata, India, specializes in high-quality Monel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
| Specifications | ASTM B564 / ASME SB564 |
|---|---|
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Monel 400 | 2.4360 | N04400 |
| Monel K-500 | 2.4375 | N05500 |
Monel Orifice Flanges find extensive use in piping systems that demand precise flow measurement of liquids or gases. They are commonly utilized in refineries, chemical plants, offshore oil platforms, desalination facilities, and nuclear power plants. When combined with an orifice plate and differential pressure transmitters, these flanges facilitate accurate flow monitoring in corrosive environments, including chloride-laden solutions, acidic slurries, or marine settings. Their sturdy construction guarantees long-lasting performance with minimal upkeep. The non-magnetic and corrosion-resistant properties of Monel make these flanges essential for critical applications in various industries.
Yes, we offer custom sizes for Monel Orifice Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
