Veer Flanges is a leading manufacturer and distributor of high-quality and reliable flanges, including the S235JRG2 flange. S235JRG2 flanges are a high-quality, strong carbon steel flange that is weldable, durable and strong, making them ideal for construction, piping, and commercial or industrial usage. Veer Flanges has the experience and resources to provide end users with reliable flanges that conform to industry standards. Veer Flanges provides products to the EN 10025 specification – so the performance of the S235JRG2 flanges are consistent. Veer Flanges is trusted by clients around the world as a provider of S235JRG2 flanges because is strives for perfection in its manufacturing processes. The company provides cost-effective products and services with excellent customer service, making it a leading choice for all your flange product needs.
The S235JRG2 flange is composed primarily of carbon steel with a balanced mix of manganese, phosphorus, and sulfur, enhancing its weldability and strength. Mechanically, it boasts a tensile strength of 360-510 MPa and a yield strength of 235 MPa, providing reliable durability for various industrial applications. Key advantages include excellent machinability, ease of welding, and compliance with EN 10025 standards, making it suitable for structural and piping uses. Its high performance, combined with affordability, makes S235JRG2 a popular choice in construction and engineering projects.

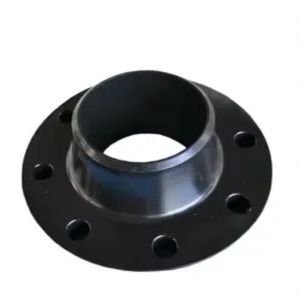

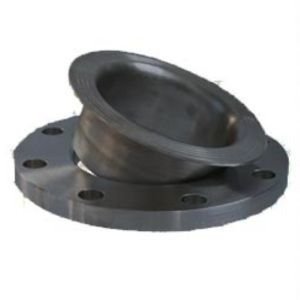

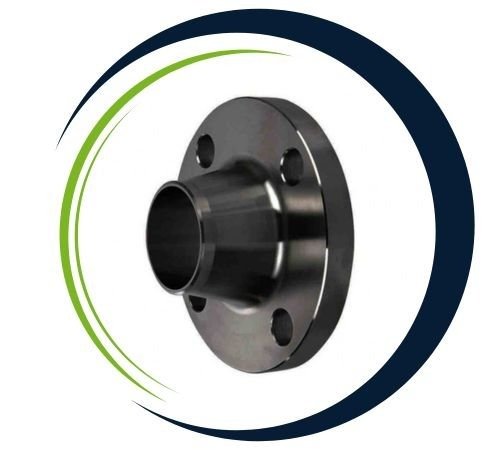

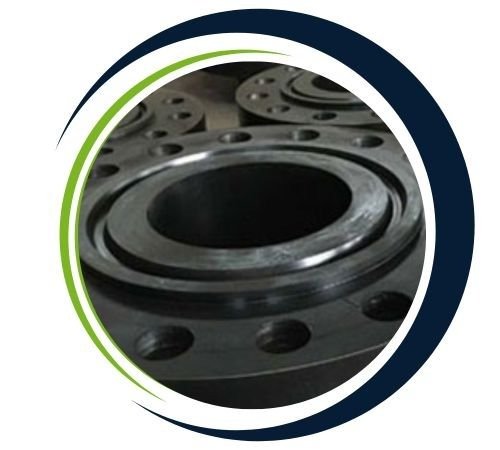

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of S235jrg2 Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent |

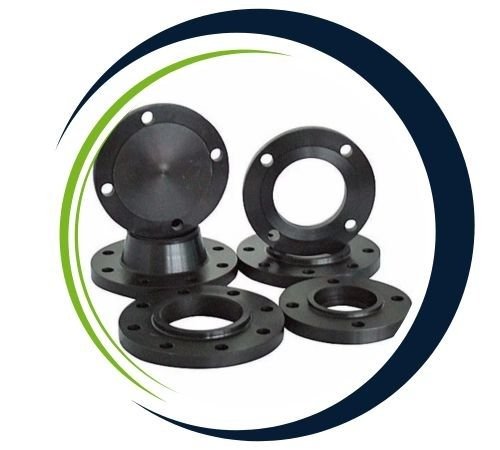

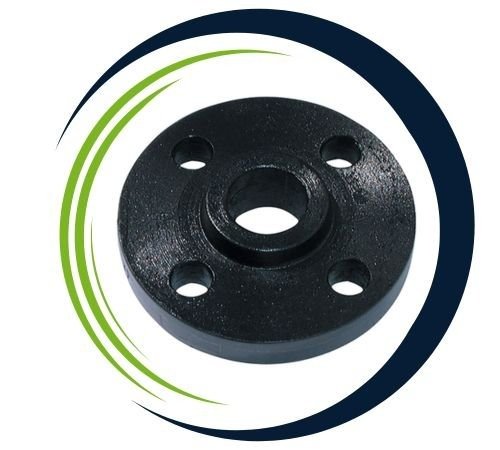

| Most common types | Forged / Threaded / Screwed / Plate |
| C | Si | Mn | Ni | P | S | Cr | Mo | Al | – |
| max 0.2 | max 0.55 | max 1.4 | max 0.3 | max 0.045 | max 0.045 | max 0.3 | max 0.08 | min 0.02 | Cr+Mo+Ni < 0.48 |
| Minimum yield strength Reh MPa | Tensile strength Rm MPa | Minimum elongation – A Lo = 5,65 * √So (%) | Notch impact test | |||||||||||
| Steel grade | Nominal thickness mm | Nominal thickness mm | Nominal thickness mm | Temperature | Min. absorbed energy | |||||||||
| ≤16 | >16 ≤40 | >40 ≤63 | >63 ≤80 | >80 ≤100 | >100 ≤125 | >3 ≤100 | >100 ≤125 | >3 ≤40 | >40 ≤63 | >63 ≤100 | >100 ≤125 | °C | J | |
| S235JR | 235 | 225 | 215 | 195 | 360-510 | 350-500 | 26 | 25 | 24 | 22 | +20 | 27 | ||
The S235JRG2 flange is widely used across construction, structural engineering, and pipeline projects due to its excellent weldability, durability, and strength. It serves as a reliable connection point in piping systems, enabling secure joins between pipes, valves, and other equipment. In structural applications, it’s commonly used in frameworks, bridges, and building structures. Its compatibility with EN 10025 standards makes it suitable for both low-stress and moderate-stress environments, particularly in industries like oil and gas, water treatment, and general construction where dependable performance is essential.
Yes, we offer custom sizes for S235jrg2 Flange to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
