Veer Flanges is a reputable manufacturer and supplier of Stainless Steel 310H Flanges based in Kolkata, India. We specialize in high-quality flanges that are specifically designed to withstand high-temperature and high-pressure conditions. The SS 310H variant is a high-carbon version of 310 stainless steel, which enhances its creep resistance and strength at elevated temperatures. Our flanges are crafted to meet international standards like ASTM A182 and ASME B16.5, making them perfect for applications in heat treatment equipment, power plants, chemical processing, and refineries. With outstanding resistance to oxidation, scaling, and thermal cycling, Stainless Steel 310H flanges are the go-to choice for structural and pressure-bearing applications in extreme heat environments.
Stainless Steel 310H Flanges are made up of about 25% chromium, 20% nickel, and a higher carbon content (around 0.04–0.10%), which boosts their strength and creep resistance at high temperatures. They have a tensile strength of approximately 515 MPa, a yield strength of about 205 MPa, and an elongation of 40%. 310H maintains its mechanical properties in oxidizing environments up to 1040°C (1904°F) and shows remarkable resistance to thermal fatigue and scaling. The increased carbon content enhances strength but slightly lowers corrosion resistance compared to 310 and 310S, making it ideal for load-bearing applications in elevated temperatures.
Specifications : ASTM A182 & ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.0 | 1.00 | 0.045 | 0.03 | 26.0 | 21.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |

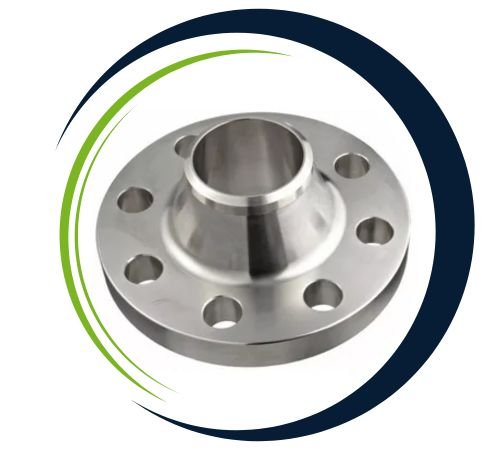

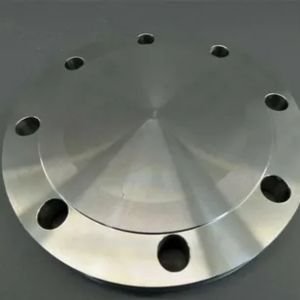

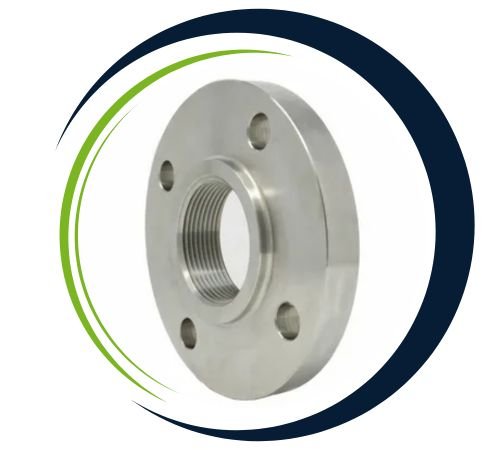

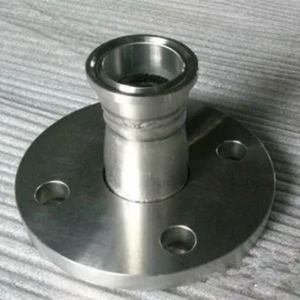

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of Stainless Steel 310H flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310H | S31009 | – | – | – | – | – | – |
Stainless Steel 310H Flanges find extensive use in furnace parts, heat exchangers, boiler components, petrochemical heaters, kilns, and gas turbines, thanks to their exceptional high-temperature performance. They are particularly suited for thermal processing, incineration systems, power generation, and various applications in the chemical industry, especially where high heat and oxidation resistance are crucial. These flanges are also utilized in superheater tubes, reformer tubes, and combustion chambers, ensuring they remain durable under continuous exposure to high temperatures and corrosive gases. SS 310H is the preferred choice when elevated strength and thermal stability are essential.
| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Stainless Steel 310H flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
