Veer Flanges in Kolkata, India is a top-notch Forged Titanium Flanges manufacturer and supplier with a reputation to offer better performance and reliability in heavy-duty industrial applications. With top-of-the-line forging technologies and strict quality control, the company provides flanges that are up to international standards for strength, durability, and resistance against corrosion. These flanges are designed to provide safe, leak-tight connections in piping systems of petrochemical, marine, aeronautic, and power generation industries. Veer Flanges’ precision engineering along with dedication to customer satisfaction has established them as a reliable name in domestic as well as international markets.
Titanium Forged Flanges are produced with high-quality titanium, mainly Grades 2 and 5, that possess superior corrosion resistance and oxidation resistance. Grade 2 offers good weldability and excellent ductility, whereas Grade 5 (Ti-6Al-4V) has high hardness and strength. These flanges show mechanical properties like tensile strength between 344 MPa (Grade 2) and 895 MPa (Grade 5), and good fatigue resistance with low density. The forging of these flanges improves their grain structure and strength, which makes them suitable for applications in high-temperature and high-stress conditions with critical requirements.
| Size Chart | 1/2″ to 48″ (15 NB) to (1200NB) |
|---|---|
| Manufacturer of | ANSI DIN, GOST, UNI, BS, AS2129, JIS, NFE, AWWA, SABS, EN etc. |
| Coating | Zinc Plated, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized |
| Common Type | Forged Flange |
| Pressure Rating Chart ANSI | 300 LBS, 600 LBS, 150 LBS, 2500 LBS, 900 LBS, 1500 LBS |
| Connect Types/ Flange Face Types Manufacturer | RTJ, FF, RF, Small Tongue, LJF, Large Tongue & Groove |
| DIN / JIS / UNI / EN | 16Bar, 6Bar, 25Bar, 40Bar, 10Bar / PN10, PN25, PN64, PN16, PN6, PN40 |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |
| Test | Magnetic particle detector, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, ydrostatic testing machine |
| Standards | API7S-43, API605, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, API7S-15, BS4504, MSS S44, ISO70051, BS 10, EN-1092, JISB2220, DIN, ASME/ANSI B16.5/16.36/16.47A/16.47B, BS1560-3.1, EN1092 |

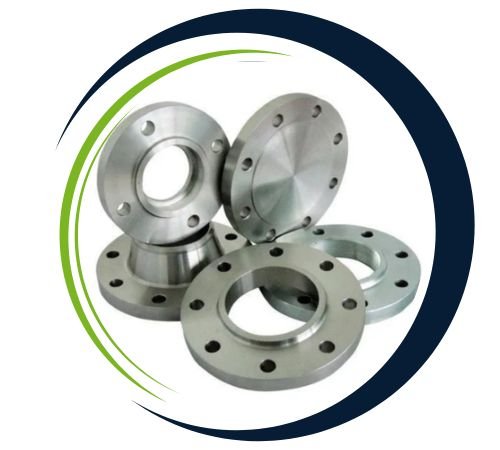

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of Titanium Forged Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 G/Cm3 | 1665 ℃ (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| 4.43 G/Cm3 | 1632 ℃ (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Gr 2 | R50400 | 3.7035 |
| Titanium Gr 5 | R56400 | 3.7165 |
Yes, we offer custom sizes for Titanium Forged Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Titanium Forged Flanges find wide application in light-weight, high-strength, and corrosion-resistant material-calling industries. They find the best utilization is in offshore and marine operations such as seawater piping and desalination plants. They deal with aggressive fluids and high-pressure conditions in the chemical and petrochemical industries. Aerospace and defense sectors utilize these flanges for their strength-to-weight benefits. They are utilized in power plants, particularly nuclear plants, and in the manufacture of medical equipment. The non-reactive and rugged characteristics of titanium make these flanges applicable to hygienic and high-performance systems.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
