Veer Flanges is a well-respected manufacturer and supplier of Titanium Grade 2 Flanges, proudly based in Kolkata, India. We focus on providing flanges that are not only lightweight but also resistant to corrosion, ensuring they meet the highest performance and durability standards. Our Titanium Gr 2 Flanges are crafted from top-quality commercially pure titanium, making them perfect for a variety of applications in marine, chemical, aerospace, and medical fields. Renowned for their excellent formability, weldability, and resistance to a broad spectrum of corrosive environments, these flanges are ideal for both high-performance and precision-engineered systems. At Veer Flanges, we prioritize product reliability, quality assurance, and timely delivery to industrial markets around the globe.
Titanium Grade 2 Flanges are made from commercially pure titanium (≥99.2%), with trace elements like Oxygen (≤0.25%), Iron (≤0.3%), Carbon, Nitrogen, and Hydrogen. These flanges are known for their outstanding corrosion resistance, particularly in oxidizing and chloride-rich environments, such as seawater. Their mechanical properties include a tensile strength of about 344 MPa, a minimum yield strength of 275 MPa, and an elongation of roughly 20%. With a low density of 4.5 g/cm³, high strength-to-weight ratio, and excellent ductility, Titanium Gr 2 is perfect for both high-pressure and lightweight structural applications.
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |
| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique |
|

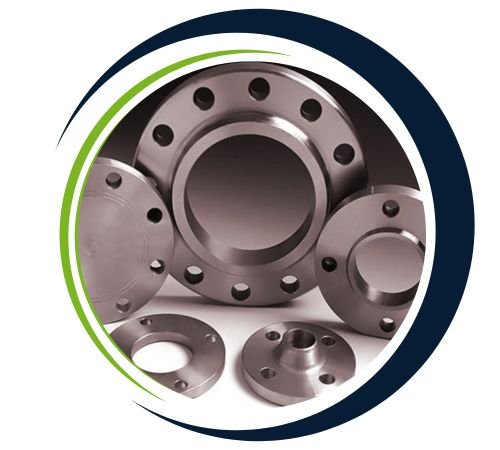

| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |

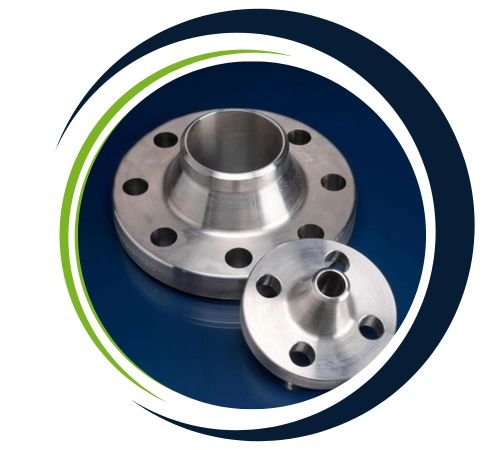

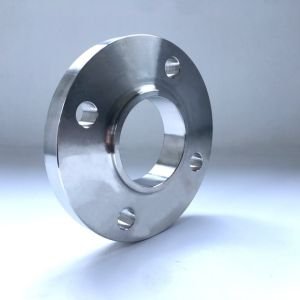

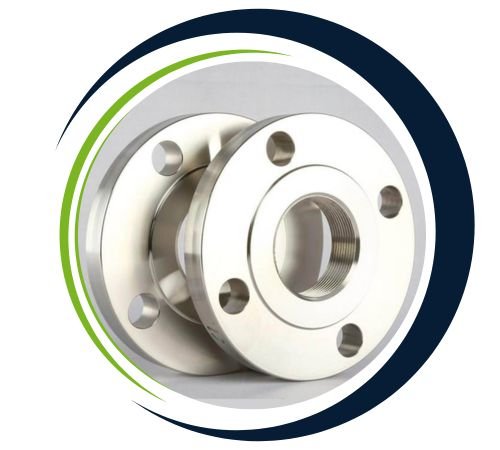

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of Titanium Gr 2 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Grade 2 Flanges find extensive use in industries that demand exceptional corrosion resistance and lightweight strength. They are commonly utilized in chemical processing, desalination plants, marine engineering, and offshore oil & gas systems. These flanges are particularly suited for connecting pipelines that transport aggressive fluids, acids, and seawater. In the aerospace and medical fields, Titanium Gr 2 Flanges are prized for their biocompatibility and structural efficiency. You’ll often see them in heat exchangers, condensers, pressure vessels, and reactors. Thanks to their excellent weldability and resistance to erosion and stress corrosion cracking, these flanges are a reliable choice for various applications.
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
Yes, we offer custom sizes for Titanium Gr 2 Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
