Veer Flanges has made a name for itself as a leading manufacturer and supplier of Titanium Grade 5 Flanges in Kolkata, India. We provide high-performance solutions tailored for critical applications that demand exceptional strength, lightweight design, and resistance to corrosion. Titanium Grade 5 (Ti-6Al-4V) is the most commonly used titanium alloy, celebrated for its remarkable mechanical properties and heat resistance. Our flanges are crafted in accordance with ASTM B381, ASME B16.5, and other international standards, ensuring top-notch quality, precision, and durability. These flanges find extensive use in aerospace, chemical processing, power generation, marine, and medical sectors, where reliability in extreme conditions is a must.
Titanium Grade 5 (Ti-6Al-4V) Flanges are made up of about 6% aluminum, 4% vanadium, and 90% titanium, striking a perfect balance between strength, corrosion resistance, and lightweight characteristics. They boast a tensile strength of around 895 MPa, yield strength of about 828 MPa, and an elongation of approximately 10–14%. These flanges maintain their structural integrity at temperatures reaching up to 400°C (752°F) and offer excellent resistance to creep, fatigue, and fractures. Additionally, Grade 5 titanium is non-magnetic, highly weldable, and perfect for high-performance applications where lightweight strength and chemical stability are crucial.
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |

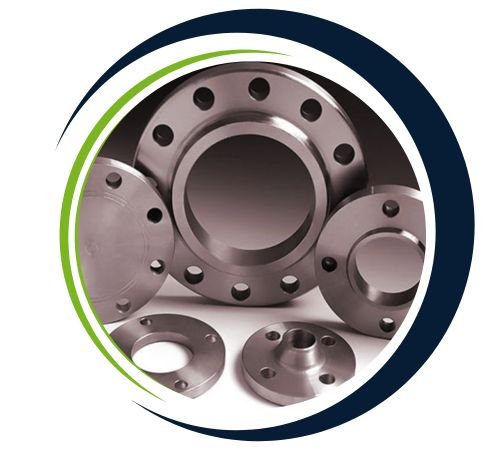

| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique |
|

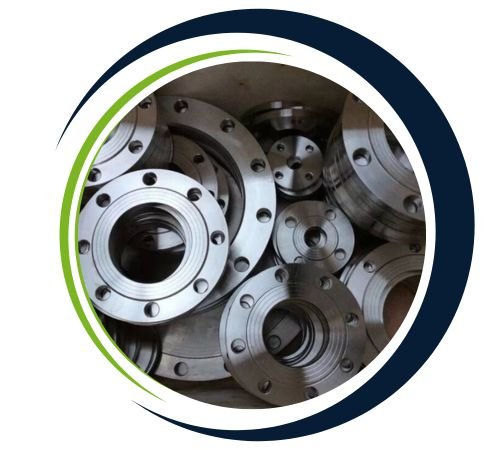

| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |

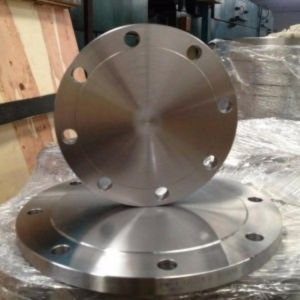

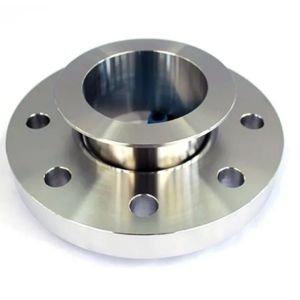

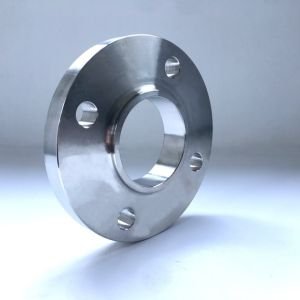

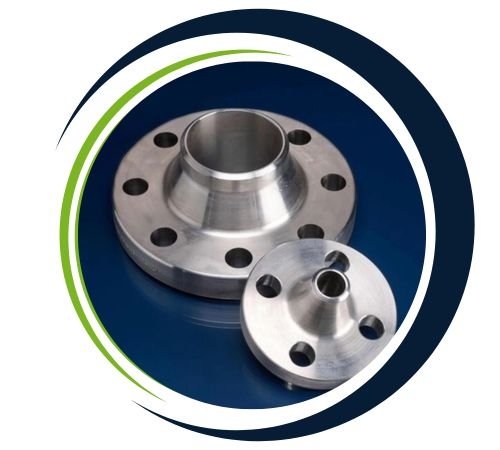

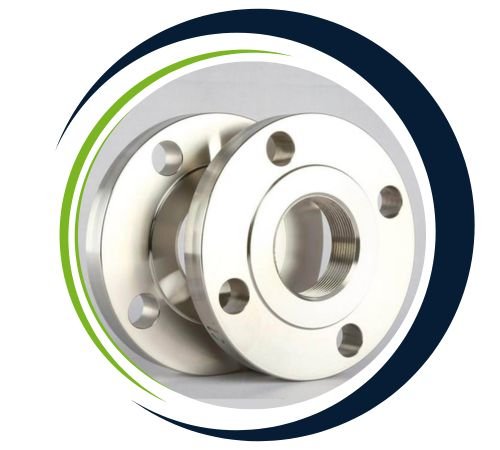

Veer Flanges, a leading supplier in Kolkata, India, offers an extensive selection of Titanium Gr 5 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Grade 5 Flanges are widely utilized in aerospace structures, jet engines, and military equipment thanks to their impressive strength-to-weight ratio. In the chemical and petrochemical sectors, they are the go-to choice for equipment that comes into contact with chlorides, acids, and oxidizing agents. Their resistance to seawater corrosion makes them ideal for marine environments, offshore oil and gas operations, and desalination plants. Furthermore, Grade 5 titanium flanges are employed in medical implants, heat exchangers, power generation turbines, and automotive parts, where high performance under stress, temperature, and corrosive conditions is essential.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Yes, we offer custom sizes for Titanium Gr 5 Flanges to meet specific project needs. Our team at Veer Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@veerflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
